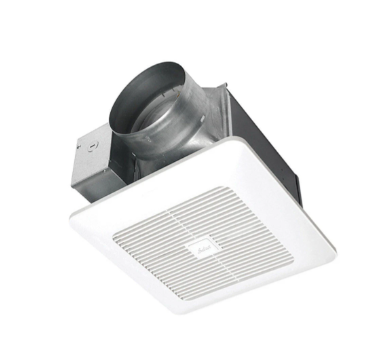

Panasonic FV-1115VK2

FV-1115VK2 Product Description

Reintroducing the WhisperGreen® Select brand of fans, our wholehouse IAQ solution with enhancements.improved, single-hinged, Flex-Z Fast® bracket for more flexible and easy installation. Other enhancements include an environmentally-friendly, 26-gauge, Zinc-Aluminum-Magnesium (ZAM) housing design and dual access junction box that helps simplify wiring in tight spaces.

Features:

Customizable, all-in-one, wholehouse-precision ventilation solution ideal for use in the bathroom, laundry room, sun room, basement or garage
Pick-A-Flow® Airflow Selector features a built-in speed selector (110-130-150 CFM model) combined with SmartFlow™ technology. It simplifies the selection process, and ensures optimum performance to meet code and reduce callbacks
New! Environmentally-friendly, 26-gauge, Zinc-Aluminum-Magnesium (ZAM) housing design
New! Improved, Flex-Z Fast®, single-hinge bracket with added flexibility, fast and easy installation
New! Elegant grille design complements the aesthetics of any room

Specifications:

Model number:FV-1115VK2
Fan Type:Fan only
Advanced Features:Pick-A-Flow™ Airflow Selector, ECM motor with SmartFlow technology
Air Volume Supply (CFM):@0.1= 110, 130, 150 @0.25= 112, 130, 151 @0.375= 105, 124, 132
Noise (Sones):@0.1"SP (110, 130, 150 CFM) = <0.3 @0.25"SP(112,130,151 CFM) = 0.3, 0.4, 0.7
Power Consumption (Watts):110 CFM=6.9, 130=9.2, 150=12.9
Energy Efficiency (CFM/Watt):110 CFM=16.0, 130=14.2, 150=11.7
Current (Amps):110 CFM=0.08, 130=0.10, 150=0.14
Power Rating (V/Hz):120/60
Motor Type (AC/DC):DC (ECM)
ENERGY STAR® Certified:Yes
Other Approved Codes and Standards:ASHRAE 62.2, LEED, CA T-24,
Duct Diameter:6 inch
Mounting Options:Horizontal
Ventilation Design Approach:Bathroom Exhaust Fan
Warranty:6 years ECM Motor, 3 years all other parts
Industry:Residential, Light Commercial
Radiation Damper Available:Yes, PC-RD05C5
Master Carton Gross Weight (lbs.):11.95 (1 unit)
Master Carton Dimensions (HxWxD):11.85 x 14.17 x 16.73
UL Listed for Tub/Shower Enclosure when GFCI Protected:Yes
