Orbit SSB-T5

SSB-T5 Product Description

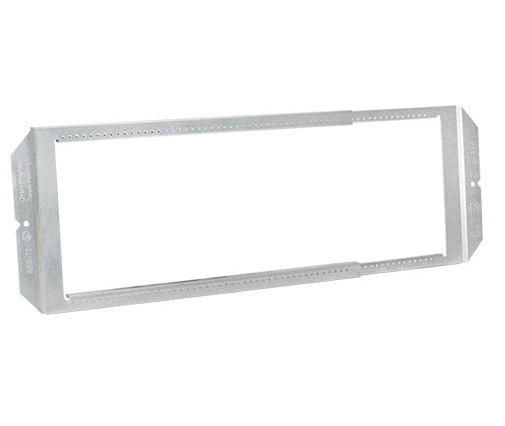

Orbit Industries’ Simple Support Bracket for Up To 5” Boxes (SSB-T5) expands from 15" to 25" to suit all common wall stud and hard lid ceiling cavities. SSB-T5 is the first telescoping bracket to accept 4”, 4-11/16” and 5” square boxes. Quickly and easily mount junction boxes anywhere between studs, via snap-on Orbit Adapters (UMA for 4” and 4-11/16” – UMA-LVBS for up to 5”). Rigid, double-rail design requires no extra back support – even at full extension! Up to three outlet boxes between 24" stud bays. Patented. UL Listed.

Features:

- Telescoping bracket adjusts from 15" to 25"

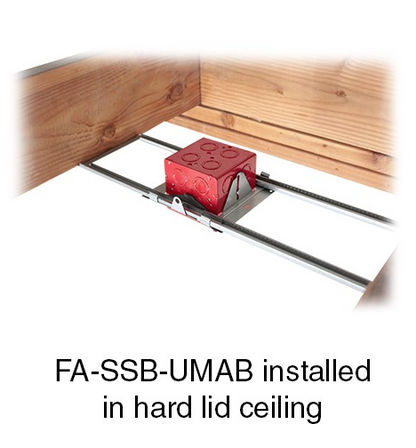

- Mount boxes between studs or overhead between hard lid ceiling joists (for T-grid, see SSB-TBAR)
- Install boxes quickly with snap-on Adapters: UMA (4" and 4-11/16" Sq. only) and UMA-LVBS (up to 5" Sq.)
- UMA-LVBS permits 4" mud ring attachment to 4", 4-11/16" and 5" square boxes
- Slide junction box to critical position - lock in place with one Tek screw
- Compatible with Orbit snap-on Adjustable Boxes: UMAB Series (3-1/2” deep 4S box) and UMAB-4R Series (4O octagon box)
- Compatible with Ready-to-Install LVBS Assemblies (include adapter, box and/or ring)
- Add and remove boxes without detaching SSB-T5 from studs or disassembling bracket
- Mounts up to three junction boxes between 24" wall studs
- Rigidity eliminates need for far-side back support
- Horizontal pin-holes provide quick starting point for screws
- Optional BMCS Series provides built-in cable/conduit support
- Compatible with Orbit’s UL Adjustable Rings
- Use LVSB Series Rings for low voltage applications that require no back-box
- Ideal for Prefabrication: collapse and expand SSB-T5 without removing junction boxes or adapters
- Order SSB-T5 as a Ready-To-Install product, available in a variety of box sizes, types and mounting styles
- Recommended for use with boxes 2-1/8” deep or (deeper)
- Patented
- Must use 5SLB-2MKO or T5B's with SSB Brackets for 1-1/4" or larger conduit
