Magnitude Lighting VAD300L24DCOD

VAD300L24DCOD Product Description

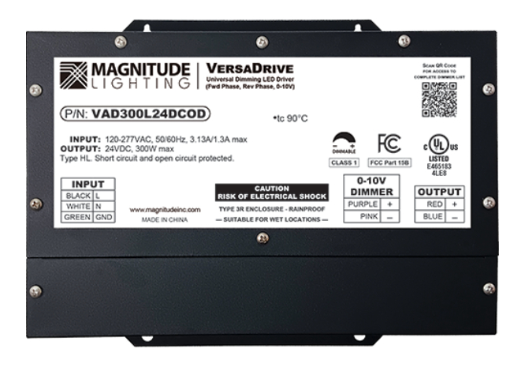

This item is the Magnitude Lighting power supply part number VAD300L24DCOD. This driver has a input voltage of 120-277V. The output current is 12500mA output with a max output power of 300 watts. This driver will operate any LED series of parallel string of LEDs designed for constant voltage input of 24V. This LED Driver is dimmable with 0-10V dimming and delivers smooth flicker-free linear dimming down to 1% with most LED's and a wide variety of compatible dimmers. It is wet location rated and UL 8750 Approved, and NEMA 3R enclosed rated.

Specifications:

Manufacturer: Magnitude Lighting
SKU: VAD300L24DCOD
Lighting Technology LED
Driver Constant Voltage
Output Current 12.5A (12500mA)
Input Current 3.0A @120V; 1.8A @ 277V
Output Wattage 300 Watt
Input Voltage 120-277VAC
Output Voltage 24VDC
Frequency 50/60Hz
Power Factor 0.90 @120VAC; 0.90 @ 277VAC
THD (Total Harmonic Distortion) Power <20%
Efficiency 91% @120VAC; 93% @ 277VAC
Dimming Phase or 0-10V Dimming
Max Case Temperature 90°C (194°F)
Operating Temperature -40°C to 50°C (-40°F to 125°F)
Rated Life 80,000 Hours
Dimensions 9.9" L x 6.4" W x 1.9" H
Certifications Title 24 Compliant, FCC Compliant, RoHS
Environment Wet Location

About Magnitude Lighting:

Magnitude Lighting’s advanced LED drivers and transformers bring innovation to commercial and residential lighting. Magnitude Lighting is an independent LED power company that focuses on LED drivers and transformers for Commercial, Industrial and Residential applications. With a remarkable longevity in LED Technology since 2008, Magnitude Lighting was one of the first companies in the industry to bring dimmable LED drivers into the lighting market.
