Magnitude Lighting CVN50R12DC

CVN50R12DC Product Description

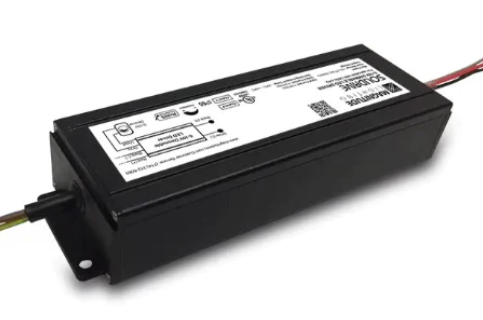

This item is the Magnitude Lighting low voltage power supply part number CVN50R12DC. This driver has a universal input voltage of 120-277V and includes Auto Reset for over temperature, over load, and short circuit protection. As always, a 5 year warranty is standard on all of Magnitude's products. The output current is 4200mA output with a max output power of 50 watts. This driver will operate any LED series of parallel string of LEDs designed for constant voltage input of 12V. It is IP66 rated and UL 8750 Approved, and Class 2, Class P rated.

Specifications:

Manufacturer: Magnitude Lighting
SKU: CVN50R12DC
Brand Magnitude
Family Constant Voltage Non-Dimmable LED Driver - UL Recognized
Length (in) 6.8''
Width (in) 2.36''
Height (in) 1.4''
Voltage (V) 120-277VAC
Input Current 0.96A Max
Bulb Type LED
IP Rating IP65
Output Voltage 12V
Output Current 4.2A
Output Power 50W Max
Power Factor > 0.95
Type Constant Voltage
Start Temp. (Min) -25ºc
Start Temp. (Max) +40ºc
THD: < 20%
Mounting Length 7.5''
UL Listed UL 8750, class 2, Class P
Warranty 5-year warranty
