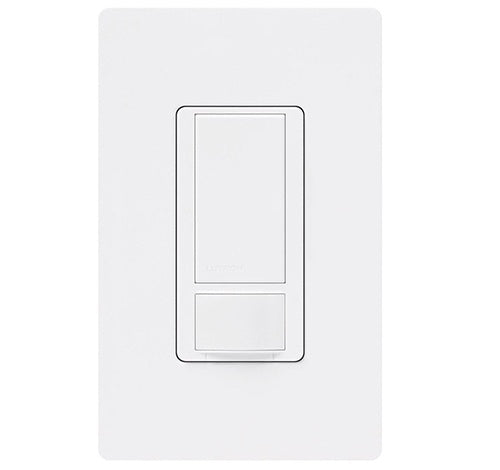

The Lutron® Maestro® Occupancy sensing switch combines a Maestro® switch with a passive infrared occupancy or vacancy sensor. The sensor detects the heat from occupants moving within an area to determine whether the space is occupied. Based on the feedback from the sensor, the occupancy sensing switch will adjust the load accordingly.
FEATURES:
Passive infrared sensors with exclusive Lutron® XCTTM Technology for fine motion detection
180° sensor field-of-view
Up to 30 ft x 30 ft (9 m x 9 m) [900 ft 2 (81 m2)] major motion coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2 (36 m2)] minor motion coverage
Occupancy version can be set to Auto-ON / Auto-OFF or Manual-ON / Auto-OFF
Vacancy version available to meet CA Title 24 requirements
Adjustable timeout (1, 5, 15, or 30 minutes) and high/low sensitivity adjustment
Occupancy sensing switch loads: incandescent, halogen, ELV, MLV, CFL, LED, magnetic fluorescent, electronic fluorescent,
SPECIFICATIONS:
UL® Listed to U.S. and Canadian safety requirements.
NOM Certification (MS- models only).
120 V~ 50/60 Hz1
120–277 V~ 50/60 Hz1
All lighting loads.
Crush/tamper resistant lens.
Smart ambient light detection.
Adaptive switching algorithm for extended relay life.
XCTTM Technology for fine motion detection.
Lutron® patented Softswitch®.
Ambient operating temperature: 32 °F to 104 °F (0 °C to 40 °C), 0%–90% humidity, non-condensing.
Indoor use only.
5-Year Limited Warranty
