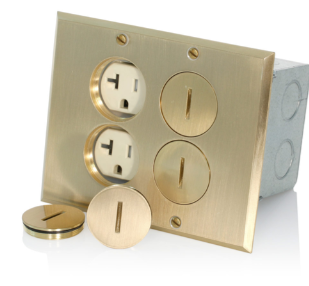

Leviton 35349-TFB
35349-TFB Product Description
For low profile, in-floor receptacle installations, our Floor Boxes are the perfect fit. Available in both 15 & 20 Amp configurations, these devices are suitable for wood frame construction with carpet and wood finished flooring, Common applications include a variety of uses from home office workstations to high-end stages and entertainment venues.
Specifications:
Brand: Leviton
NEMA: WD-6
Temperature Rise: Max 30C after 50 cycles OL at 150 percent rated current
At Rated Voltage: 1 HP
Flammability: Rated V-2 per UL 94
Grounding Screw: Brass 8-32
Clamp Nuts: Zinc-Plated Steel
Dielectric Voltage: Withstands 2000V per UL498
Operating Temperature: -40 °C to 60 °C
Wire: 3
RoHS Compliant: FALSE
Color: Ivory
Line Contacts: Brass Triple-Wipe .031 Thick
Type: Wood Frame
Floorplate Material: Solid Brass 0.060 In Thick
Warranty: 2-Year Limited
Current Limiting: Full Rated Current
Product ID: Ratings are permanently marked on device
Terminal Accom.: 14-10 AWG
Amperage: 20 A
Shutter Mechanism: Delrin Acetal
Face Material: Nylon
Strap Material: Zinc-Plated Steel
Voltage: 125 VAC
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Body Material: Nylon
Terminal Screws: Brass 8-32
Ground Clips: Brass-Plated
Grounding: Self-Grounding
Pole: 2
Termination: Back & Side
About Leviton:
Leviton Manufacturing Company, Inc., is the largest privately held manufacturer of electrical wiring equipment in North America. We are committed to delivering the highest quality and most reliable, safe and sustainable solutions to our customers around the world. Inventing and manufacturing products that connect people to the power that moves them forward, the light that guides their way and the data that drives their lives. From single-family homes to the biggest commercial buildings and industrial facilities in the world, we create smart, safe, sustainable environments that save energy, time and money.
