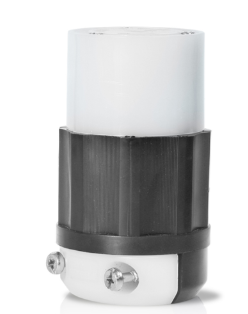

Leviton 3433-GC
3433-GC Product Description
Leviton's Black & White line of industrial grade plugs, connectors, flanged inlets, and outlets offer superior performance, long lasting reliability and features that are backed by a limited lifetime warranty.
Specifications:
Brand: Leviton
Back Cover: Thermoplastic
Pole: 3
Voltage: 250 VAC
Blades/Contacts: Solid Brass
Terminal Screws: Brass
Wire Gauge: 14-8 AWG
Clamp Insert: Nylon
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Flammability: Rated HB or better UL94
NEMA: WD-6
Amperage: 30 A
Dielectric Voltage: Withstands 2000V per UL498
Current Interrupting: Certified for current interrupting at full rated current
Body Material: Impact Modified Nylon
Temperature Rise: Max 30C at 250 cycles OL at 200 pct rated current
Terminal Accom.: 18-10 AWG
Torque Range: 10-14 in-lbs
Operating Temperature: -40 °C to 60 °C
NOM: 57
Wire: 4
Cord Range: .595 - 1.150
Product ID: Ratings and NEMA I.D. permanently marked on device
Cord-Clamp: Nylon
Assembly Screws: Steel, Zinc Plated
Grounding: Non-Grounding
Color: Black-White
Environment: Dry
Wire Module: Nylon
RoHS Compliant: TRUE
