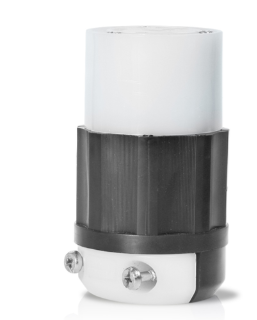

Leviton 3333
3333 Product Description
Leviton Locking Connector, 30A, 125v/250v, Industrial Grade, Black/ White.
Specifications:
Brand: Leviton
Torque Range: 10-14 in-lbs
Color: Black-White
Wire Module: Nylon
Pole: 3
Operating Temperature: -40 °C to 60 °C
NEMA: WD-6
Current Interrupting: Certified for current interrupting at full rated current
Flammability: Rated HB or better UL94
Wire: 3
Temperature Rise: Max 30C at 250 cycles OL at 200 pct rated current
RoHS Compliant: TRUE
Clamp Insert: Nylon
Wire Gauge: 16-8 AWG
Voltage: 125/250 VAC
Blades/Contacts: Solid Brass
Assembly Screws: Steel, Zinc Plated
Warranty: Limited Lifetime Warranty Warranty
Amperage: 30 A
Terminal Screws: Brass
Body Material: Impact Modified Nylon
Terminal Accom.: 18-10 AWG
Dielectric Voltage: Withstands 2000V per UL498
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Product ID: Ratings and NEMA I.D. permanently marked on device
Environment: Dry
Device Type: Locking Connector
Cord-Clamp: Nylon
Grounding: Non-Grounding
Back Cover: Thermoplastic
Cord Range: .385 - .860
