Leviton 330C6WLEV
330C6WLEV Product Description

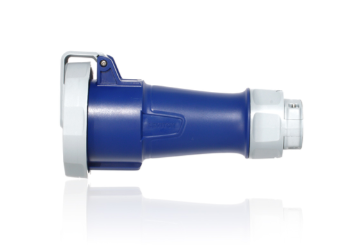

Leviton LEV Series Pin & Sleeve Connector, 30A, 125V 2P, 3W, Blue Finish.
Specifications:
Brand: Leviton
Conductor Range: #12 AWG to #8 AWG
Impact: Drop from 30" 8 times after conditioning to -25 °C, for 6 hoursDrop from 72" after conditioning to -35 °C, for 6 hours
Overload UL20 Test: 50 cycles
Amperage: 30 A
Pole: 2
IP Rating: IP66, IP67, IP68, IP69K
Screw Terminal Torque: 20 in-lb
Terminal Screws: 303 Stainless Steel
Temperature Rise: Max 30 °C rise at full rated current (after overload)
Hardware Head Type: Hex style socket screws for terminals, combination screws for all others
Color: Blue
RoHS: RoHS compliant components
Assembly Screws: 303 Stainless Steel
Grommet/Gasket: NBR/Buna N
UV Resistance: UV stabilized F1 rated housings
Endurance: 1000 cycles rated V and I load, 1000 cycles no-load (30A)
Crush Test: 250 lbs for 1 min after -25 °C for 6 hrs
Max. Voltage: 600V
Dielectric Voltage: 3000V for 1 min.
Cable Clamp Screw Torque: 10 in-lb
Housing: Impact Modified Nylon
Contact Carrier: Glass filled Nylon
SCCR: 200kA
Clock Position: 6 o'clock
NEMA Enclosure Type: 3R, 4X, 6P and 12
NOM: NOM ANCE standards
Contact Carrier Assembly Screw Torque: 8 in-lb
Product Markings: Brand, UL, CE and environmental ratings molded in. Item number, ampacity, voltage, Configuration: North American
Flammability: Rated V-0 (Contact Carrier), HB or better (Housing) per UL94
RoHS Compliant: FALSE
Wire: 3
Corrosion Resistance: Salt fog tested
Device Type: Connector
Voltage: 250 VAC
Series: LEV Series
About Leviton:
Leviton Manufacturing Company, Inc., is the largest privately held manufacturer of electrical wiring equipment in North America. We are committed to delivering the highest quality and most reliable, safe and sustainable solutions to our customers around the world. Inventing and manufacturing products that connect people to the power that moves them forward, the light that guides their way and the data that drives their lives. From single-family homes to the biggest commercial buildings and industrial facilities in the world, we create smart, safe, sustainable environments that save energy, time and money.
