Leviton 2775
2775 Product Description

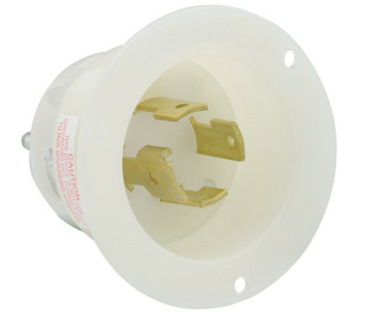

Leviton 30A, 347/600 Vol, Flanged Inlet Locking Receptacle, Industrial Grade.
Specifications:
Brand: Leviton
Current Limiting: Full Rated Current
Terminal Accom.: 18-10 AWG
Pole: 4
Brand: Black and White
Environment: Dry
Grounding: Non-Grounding
Face Material: Nylon
Flammability: Rated V-2 per UL 94
Strap Material: Thermoplastic Nylon
RoHS Compliant: TRUE
Amperage: 30 A
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Device Type: Locking Flanged Inlet
Screw Terminal Torque: 10-14 in-lbs
Warranty: Limited Lifetime Warranty Warranty
Voltage: 347/600 VAC
Wire: 4
Operating Temperature: -40 °C to 60 °C
Phase: 3-Phase WYE
Color: White
Termination: Back
Dielectric Voltage: Withstands 2000V per UL498
NOM: 57
Line Contacts: Solid Brass
Terminal Screws: Brass 10-32
NEMA: WD-6
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Product ID: Ratings and NEMA I.D. permanently marked on device
Body Material: Nylon
