Leviton 24W47
24W47 Product Description

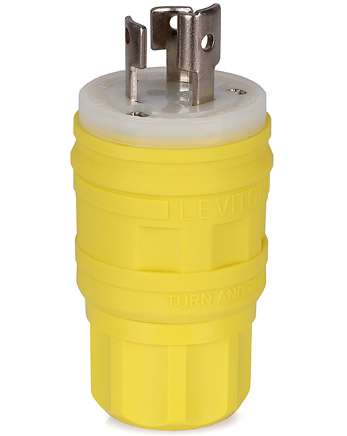

Leviton 15A, 125V NEMA L5-15P, 2P, 3W, Locking Plug, Grounding, Wetguard, Yellow Finish.
Specifications:
Brand: Leviton
Cord Grip Range (in): 0.375 to 0.655
Assembly Screws: Stainless Steel 300
Wire Module: Nylon
Body Interior: Nylon
Operating Temperature: -40 °C to 60 °C
Voltage: 125 VAC
RoHS Compliant: TRUE
Torque Range: 12-14 in-lbs
Compression Nut, Strain Relief: Nylon
Product ID: Ratings and NEMA I.D. permanently marked on device
Flammability: Rated V-2 per UL 94
IP Rating: IP66, IP67, IP69K
Grounding: Grounding
Wire: 3
Standards and Certifications: UL/CSA
Brand: Wetguard
Current Limiting: Full Rated Current
Environment: Wet
Color: Yellow
Pole: 2
Blades/Contacts: Nickel-Plated Brass
Terminal Accom.: 18-10 AWG
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Terminal Screws: Electroless Nickel-coated Brass
Amperage: 15 A
Bushing: Santoprene TPV
Body Material: EPTR Rubber
Device Type: Locking Plug
Dielectric Voltage: Withstands 2000V per UL498
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
