Legrand ADPD153LW2
ADPD153LW2 Product Description

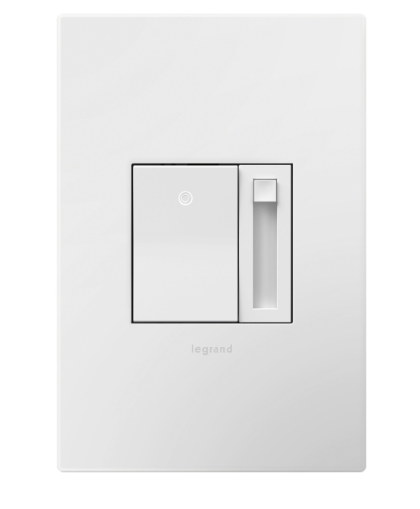

Legrand LED dimmer switch in the adorne® Collection. Designed specifically for flicker-free control of today's dimmable LED light bulbs and fixtures, this dimmer features advanced circuitry to offer a superior lighting control experience that works right out of the box. The dimmer switch boasts a variety of user adjustments to adapt to a wide range of dimmable LED lights, eliminating unpleasant flickering, pop-ons and more. As a part of the adorne® Collection, the advanced dimmer for LED lights also features clean lines and smooth control for a sophisticated touch. Pair with a screwless adorne® Wall Plate and other designer switches and outlets from the Collection for a cohesive design throughout the home. Made exclusively for use with screwless Wall Plates from the adorne® Collection, sold separately. *Not intended for use with 0-10V, Magnetic Low Voltage and Electronic Low Voltage Drivers.
Features:
Specifically designed for use with dimmable LED bulbs and fixtures up to 150W at 120VAC. Optimized to work out of the box, and provide flicker-free control of LEDs. *Not intended for use with 0-10V, Magnetic Low Voltage, or Electronic Low Voltage Drivers
Helps fight the growth of stain and odor-causing bacteria through the invisible and continuous product protection of Microban antimicrobial technology
Advanced dimming technology maximizes LED compatibility to provide a full range of control while helping to eliminate most common LED dimming issues.
Simple high-and-low end dimming limit adjustability with easy-to-push calibration button to meet all lighting preferences and eliminate LED flickering.
Replaces any basic single-pole or 3-way switch or dimmer in less than 15 minutes. No neutral wire required, works in both new construction and retrofit applications.
Back-wire screw and pressure plate terminations for easy and reliable wiring with ground wire lead and wire nut provided.
QR code provided on front face of device to provide easy access to installation guides and videos.
Constant memory feature returns light levels and user adjustments to return to previous settings following a power failure or outage.
Optional LED Burst Mode setting can be activated as needed to help eliminate or reduce LED turn on delays and pop-ons.
For complete installation, device must be paired with an adorne screwless Wall Plate (not included)
Specifications:
SKU: ADPD153LW2
Brand: Legrand
Color: White
Material: Polycarbonate
Finish: Matte
Application/Use: Hospitality, Residential
Product Use: Post & Signage
Features: Antimicrobial Protection, Light-weight, Low Dust Buildup, UL Listed Marks, Tamper-Resistant, Impact-Resistant
Number of Outlets: 4
Switch Type: Paddle, Decor
Warranty Type: Limited Lifetime Warranty
Product Depth US: 1.63 in
Product Height US: 2.75 in
Product Width US: 1.37 in
Product Weight US: 0.3 lb
cULus Listed: Yes
ETL Listed: Yes
Product Has Potential to Contribute to LEED: Yes
Energy Star: Yes
RoHS Compliant: Yes
Requires Neutral Wire: No
Wire Connection Type: Screw Terminals
Dimming Compatibility: Fluorescent, Incandescent, LED, Magnetic Low Voltage, Neon Sign, Non-Dimming, Solid-State, Triac, Universal
Frequency Rating: 60 Hz
Amps/Current: 15 A
Load Rating: 1800 W (Incandescent), 600 W (LED), 1800 W (Fluorescent), 1200 VA (Magnetic Low Voltage)
Load Type: LED
Voltage: 120 VAC
Number of Poles: Single Pole/3-Way
Fused: Yes
