Keystone KT-BPLED35PS-14C-8CSA-VDIM

KT-BPLED35PS-14C-8CSA-VDIM Product Description

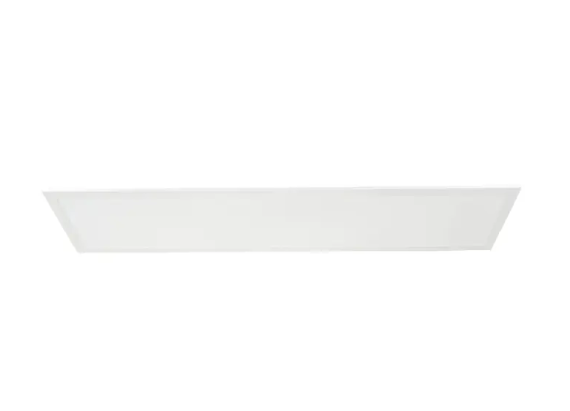

This Keystone LED flat panel delivers efficient illumination for offices, schools, healthcare facilities, and retail environments. Featuring dual-selectable Power Select and Color Select technologies, it offers customized lighting solutions for diverse applications. The precision-engineered design with extruded aluminum frame ensures easy installation in both recessed and surface mount applications.

Features:

1x4 LED panel with smooth diffuser for uniform light distribution in commercial environments
Field-adjustable wattage: choose between 20W/30W/35W to customize light output for specific applications
Field-adjustable CCT: choose between 3500K/4000K/5000K to create the ideal environment (factory preset 5000K)
Maximum output of up to 4,200 lumens with 80+ CRI and efficacy up to 130 lm/W
Universal voltage 120-277V
Extruded aluminum frame with precision laser welded corners and satin white powder coating
IC rated for direct insulation contact and suitable for recessed or surface mount installations
UL certified for dry/damp locations with operating temperature range of -4°F to 104°F
Compatible with Keystone SmartSafe LED emergency backup systems
50,000 hour rated life backed by 5-year limited warranty

Specifications:

Brand:    Keystone
Flat Panel Type:    Back-Lit
Manufacturer Part Number:    KT-BPLED35PS-14C-8CSA-VDIM UPC:    843654156972
Lumens:    4,000 Lumens
Wattage:    35 Watts
Input Voltage:    120-277V
Dimmable:    0-10V
Color Temperature:    3500K, 4000K, 5000K
Rated Hours:    50,000 Hours
Min Operating Temp:    -4 Degrees F
CRI:    80+
Special Features:    CCT Selectable, Wattage Selectable
Length:    47.76"
Width:    11.93"
Height:    1.47"
