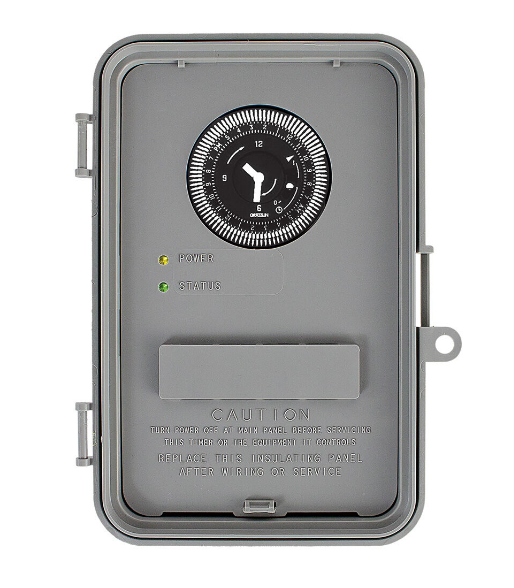

Intermatic WHAVQ4

WHAVQ4  Product Description

Specification:

Model Number WHAVQ4
Description 24 Hour 120-240V Water Heater Timer with Battery Backup and Auto-voltage, 40A
SPDT/DPDT, Type 3R Indoor/Outdoor Plastic Enclosure
UPC Code 078275140998
Brand Domestic Intermatic
Country of Origin (Intermatic) MEXICO
Warranty Period 1-Year limited
Control Specifications
Maximum ON/OFF Operations 48
Operation Mode 24 hour
Backup Type 72-hour Carry-over; Battery; Self-recharging
Backup Protection Time 72 Hours
Battery Service Type Rechargeable
Mechanism Type Analog/Mechanical
Has Captive Trippers Yes
Has Override Switch Yes
Has Real-time Clock Face Yes
Electrical Specifications
Voltage Selection Type Auto Voltage
Wiring Option Screw box lug
Input Voltage Range(s) 120-240 VAC, 50/60 Hz
Switch Type 40 A, DPDT
Switch Configuration DPDT (2 NO and 2 NC contacts)
Electrical Life 50,000 operations at full load

About Intermatic:

Our product portfolio broadened to include industrial- and commercial-grade controls starting in 1990 and would soon expand with a variety of progressive, energy-saving solutions. Today, Intermatic offers an extensive catalog of lighting and energy controls, surge protection devices, weatherproof covers, and Wi-Fi-enabled solutions as we continue to evolve and push the industry forward.
