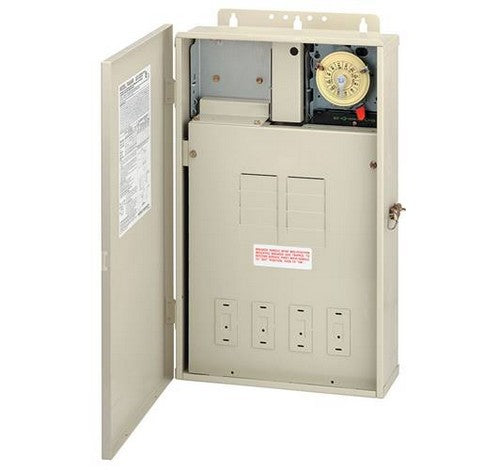

Intermatic T40004R 125 A Load Center With T104M Mechanism

2 sold in last 8 hours
customers are viewing this product
T40004R | 125 A Load Center with T104M Mechanism and can be used as a Load Center only, or add mechanisms or wiring devices for complete control systems.


Eight breaker spaces
Reduces installation costs
All-in-one electrical load center eliminates the need for additional service panels
Accepts any combination of PF1000M Series, P1403ME, P1353ME, P4043ME, P4243ME, T100M Series or RC2000M Series mechanisms
Fully compatible with all electrical requirements for pool/spa installations
Load center dead front has four knockouts for switches or GFCIs (Note: T40000R4 has one knockout)
Wiring devices may be installed in these Load Centers with the use of Standoffs, sold separately


Maximum ON/OFF Operations: 0
Has Override Switch: No
Input Voltages Display: 208-277 VAC, 60 Hz
Resistive: 40 A, 120-240 VAC, 60 Hz
Inductive: 40 A, 120-240 VAC, 60 Hz
Tungsten: 40 A, 120-240 VAC, 60 Hz
Pilot Duty: 1000 VA, 120-240 VAC, 60 Hz
Motor :
2 HP, 24 FLA, 120 VAC, 60 Hz
5 HP, 28 FLA, 240 VAC, 60 Hz
Number of Circuits: 1
Maximum Power Consumption (W): 3 W
Switch Type: DPST
Operating Temperature Max (°C): 54
Operating Temperature Max (F): 130
Operating Temperature Min (°C): -40
Operating Temperature Min (F): -40
Warranty: 1-year
