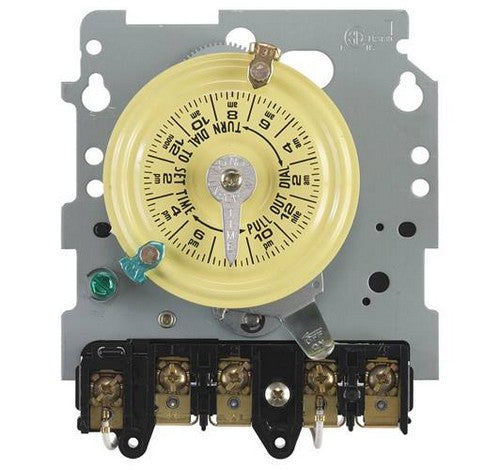

T106M | 24-Hour Mechanical Time Switch - Mechanism Only. These heavy duty Time Switch Mechanisms are designed for commercial, industrial and residential applications, and have the highest motor load ratings in the industry. They provide up to 12 ON/OFF operations each day with minimum ON/OFF time of 1 hour. All models are equipped with ON and OFF trippers and can be installed in almost all Intermatic enclosures.
FEATURES :
Direct 24-hour control of most loads
Up to 12 ON/OFF operations each day with minimum ON/OFF times of one hour
Time Switch Mechanism Fits in Most Intermatic Enclosures
Manual override
One ON and one OFF tripper included
SPECIFICATIONS :
Switch Rating: 40 Amp Resistive, inductive or tungsten per pole
Switch Type: SPDT
Voltage: 120/208/240/277 VAC
Clock Motor: 208/277 Volts at 60 Hz
Contacts: 1 Normally Open, 1 normally closed set of contacts
Horsepower: 2HP
120V; 5HP
240V
Agency Approval: CSA/C-US
Warranty: 1-year
APPLICATIONS :
Filter Pumps
Heat Pumps
Lighting
