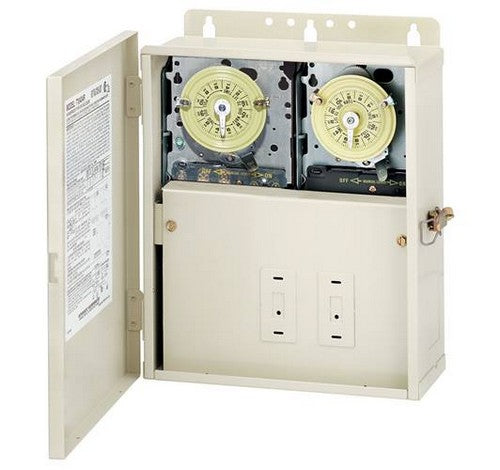

Intermatic T10604R 30 A Power Center With T106M & T104M Mechanisms

T10604R | 30 A Power Center with T106M & T104M Mechanisms. Can be used as a power center only, or add mechanisms or wiring devices for complete control systems.

FEATURES :

Available with one or two heavy-duty time switch mechanisms
Accepts any combination of PF1000M, P1403ME, P1353ME, P4043ME, P4243ME, T100M or RC2000M Series mechanisms
Load center dead front has two knockouts for switches or GFCIs and one on the side
Wiring devices may be installed in these load centers with the use of Standoffs, sold separately below
Control two-speed pumps with the T10604R

SPECIFICATIONS :

Maximum ON/OFF Operations: 0
Has Override Switch: No
Input Voltages Display: 208-277 VAC, 60 Hz
Resistive: 40 A, 120-240 VAC, 60 Hz
Inductive: 40 A, 120-240 VAC, 60 Hz
Tungsten: 40 A, 120-240 VAC, 60 Hz
Pilot Duty: 1000 VA, 120-240 VAC, 60 Hz
Motor :
2 HP, 24 FLA, 120 VAC, 60 Hz
5 HP, 28 FLA, 240 VAC, 60 Hz
Number of Circuits: 2
Maximum Power Consumption (W): 3 W
Switch Type: SPDT/DPST
Operating Temperature Max (°C): 54
Operating Temperature Max (F): 130
Operating Temperature Min (°C): -40
Operating Temperature Min (F): -40
Warranty: 1-year

APPLICATIONS :

Pool and Spa Equipment
Lights
