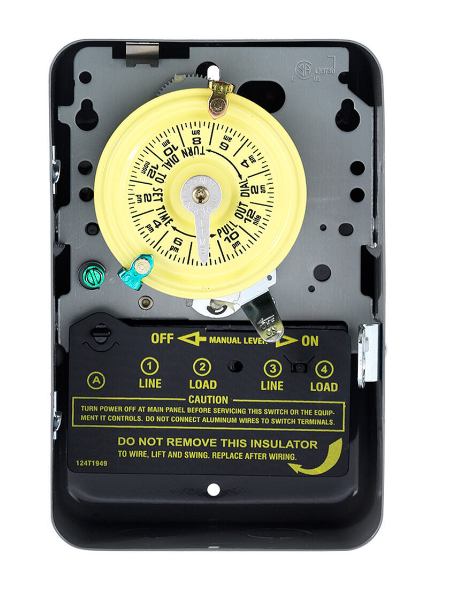

Intermatic T104-50

T104-50 Product Description

The T100 Series Mechanical Time Switch has proven it can stand the test of time. These dependable time switches can handle electrical loads up to 40 A per pole and allow for up to 12 ON/OFF operations per day. A manual override switch provides added convenience.

Specification:

Model Number T104-50
Description 24-Hour Mechanical Time Switch, 208-277 VAC, 60Hz, DPST, Indoor Metal Enclosure, 1 Hour
Interval
UPC Code 078275117143
Brand Intermatic
Warranty Period 1-Year limited
Control Specifications
Minimum ON/OFF Times 1 hour
Maximum ON/OFF Operations 12
Skipper Wheel Not Included
Operation Mode 24 hour
Has Manual Override Yes
Application Compatibilities LED; HID
Mechanical Specifications
Enclosure Type Indoor type 1 metal
Number of Trippers Included 1 ON/1 OFF
Dimensions
Product Dimensions (H x W x D) in 7 7/8 x 5 1/8 x 3 7/16 in
Wire Size Min #14 AWG
Wire Size Max #8 AWG
Knockout Dimensions Bottom (2) combination 1/2" - 3/4"
Knockout Dimensions Back (1) combination 1/2" - 3/4"
