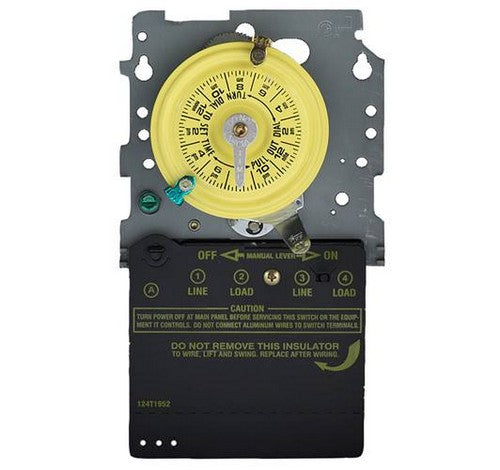

Intermatic T103M 24-Hour Mechanical Time Switch - Mechanism Only

2 sold in last 8 hours
Intermatic
T103M
$66.76
$66.76
customers are viewing this product
T103M | 24-Hour Mechanical Time Switch - Mechanism Only. The T100 Series Mechanical Time Switch has proven it can stand the test of time. These dependable time switches can handle electrical loads up to 40 A per pole and allow for up to 12 ON/OFF operations per day. A manual override switch provides added convenience.

FEATURES :

Direct 24-hour control of most loads
Up to 12 ON/OFF operations each day with minimum ON/OFF times of one hour
Manual override
One ON and one OFF tripper included

SPECIFICATIONS :

Maximum ON/OFF Operations: 12
Has Override Switch: No
Resistive: 40 A, 120-240 VAC, 60 Hz
Inductive: 40 A, 120-240 VAC, 60 Hz
Tungsten: 40 A, 120-240 VAC, 60 Hz
Motor
2 HP, 24 FLA, 120 VAC, 60 Hz
5 HP, 28 FLA, 240 VAC, 60 Hz
Enclosure Type: N/A - Mechanism Only
Number of Circuits: 1
Maximum Power Consumption (W): 3 W
Switch Type: DPST
Operating Temperature Max (°C): 54
Operating Temperature Max (F): 130
Operating Temperature Min (°C): -40
Operating Temperature Min (F): -40
Warranty: 1-year

APPLICATIONS :

Indoor/Outdoor Lighting
Signs
Filters
Electric Fences
Fans
Conveyors
Pool Heaters
Blowers
Pumps
Other Electrical loads
Please email us with the products you need and the details of your job at buyriteelectric@gmail.com
