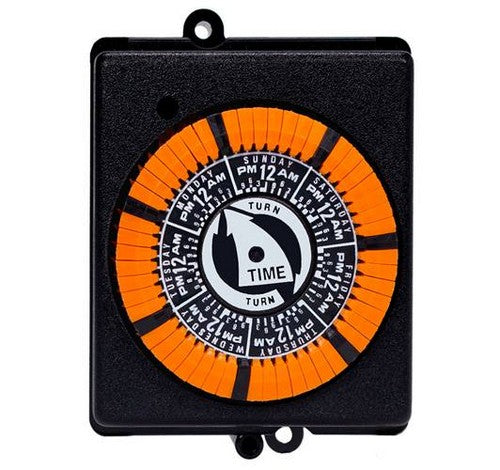

Intermatic PB873MKZ 7-day Panel Mount Timer

2 sold in last 8 hours
Intermatic
PB873MKZ
$30.19
$30.19
customers are viewing this product
PB873MKZ | 7-Day Panel Mount Timer. These timers provide automatic control for pumps, cleaners and other types of loads. Timers have three-way mounting; flush in round opening, raised in rectangular opening or on base. Quick connect terminals for easy installation.

FEATURES :

Automated control for pumps, cleaners and other types of loads
3 different mounting methods
Quick connect terminals for easy installation
24-hour timing cycle - MIN ON time 1-hr, MAX ON time 23-hr, 30-min intervals
7-day timing cycle - 6 to 162-hr ON time, 3-hr intervals

SPECIFICATIONS :

Maximum ON/OFF Operations: 0
Operation Mode: 7-day
Has Override Switch: No
Input Voltages Display: 120 VAC, 60 Hz
Resistive: 20 A, 120-277 VAC, 60 Hz
Tungsten: 1250 W, 125 VAC, 60 Hz
Pilot Duty: 360 VA, 120-277 VAC, 60 Hz
Motor :
1 HP, 16 FLA, 120 VAC, 60 Hz
2 HP, 12 FLA, 240 VAC, 60 Hz
Number of Circuits: 1
Switch Type: SPST
Operating Temperature Max (°C): 0
Operating Temperature Max (F): 0
Operating Temperature Min (°C): 0
Operating Temperature Min (F): 0
Warranty: 1-year

APPLICATIONS :

Automated Control for Pumps, Cleaners, Other Types of Loads
