Intermatic MIL72AQWUZH-120

MIL72AQWUZH-120 Product Description

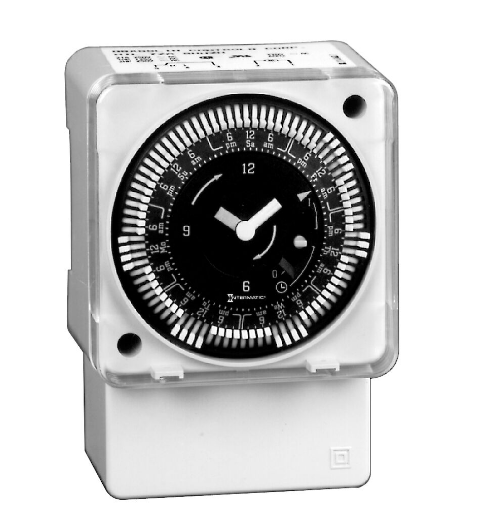

The MIL72 series time switches are designed to be mounted inside a control panel and can accommodate surface/DIN rail or flush panel mounting. The MIL72 series is a light-duty commercial time switch for 12-24 VAC/VDC, 120 or 208/240 VAC single-phase applications.

Features:

Model Number MIL72AQWUZH-120
Description 7-Day 120V Electromechanical Surface/DIN Rail Mount Timer Module with Battery Backup and
Manual Override, 2 Hour Intervals, 21A, SPDT
UPC Code 078275153325
Brand Domestic Intermatic
Country of Origin (Intermatic) MEXICO
Warranty Period 1-Year limited
Control Specifications
Maximum Cycle Time 7 days
Timing Interval 2 hrs
Clock Drive Type Quartz
Backup Type 72-hour Carry-over; Battery; Self-recharging
Battery Type NiMh
Backup Protection Time 72 Hours
Battery Service Type Rechargeable
Mechanism Type Electromechanical
Has Captive Trippers Yes
Has Override Switch Yes
Has Real-time Clock Face Yes
Application Compatibilities Incandescent; Fluorescent; CFL; LED
Mechanical Specifications
Mounting Options Surface; DIN
Has Finger-Safe Terminals Yes

About Intermatic:

Our product portfolio broadened to include industrial- and commercial-grade controls starting in 1990 and would soon expand with a variety of progressive, energy-saving solutions. Today, Intermatic offers an extensive catalog of lighting and energy controls, surge protection devices, weatherproof covers, and Wi-Fi-enabled solutions as we continue to evolve and push the industry forward.
