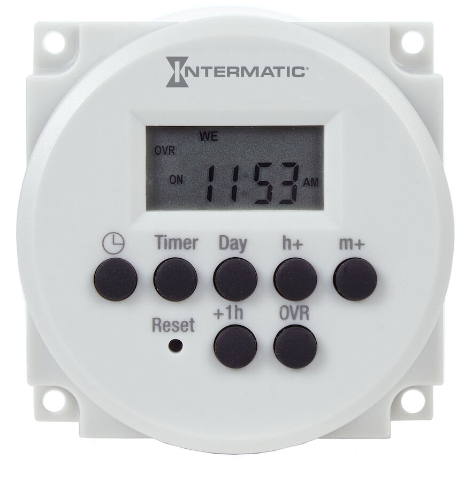

Intermatic FM1D14A-AV

FM1D14A-AV Product Description

TThe FM1D14 Series is a great value electronic time-based control solution for ventilating, heating, cooling, lighting or other electrical loads in commercial and industrial applications. These one-channel time switches are programmable for 24-hour or 7-day schedules. The FM1D14 Series is intended for either panel, surface, flush or DIN rail mounting. Flush and surface/DIN rail (A & E models) are completely enclosed in a plastic housing and include a terminal cover, dust cover and subbase for installation and hard wiring.

Specification:

Stock Code: FM1D14A-AV
Brand: Intermatic
Family: FMD Series 24-Hour/7-Day Electronic Time Switches
Voltage (V): 120-277 VAC, 50/60 Hz
Amperage: 15 Amps
Battery Back Up: Yes
Housing: Plastic
Set Points: 14 programs, Self-recharging battery with backup protection up to 2500-hours
Switch Type: SPDT
Mounting: Surface/DIN Rail
Operates: 1 Circuit
Start Temp. (Min): -40 F / -40C
Start Temp. (Max): 131 F/ 55C
UL Listed: cRUus , California Title 24 Complaint
Case Quantity: 1
Warranty: 1-year limited

About Intermatic:

Our product portfolio broadened to include industrial- and commercial-grade controls starting in 1990 and would soon expand with a variety of progressive, energy-saving solutions. Today, Intermatic offers an extensive catalog of lighting and energy controls, surge protection devices, weatherproof covers, and Wi-Fi-enabled solutions as we continue to evolve and push the industry forward.
