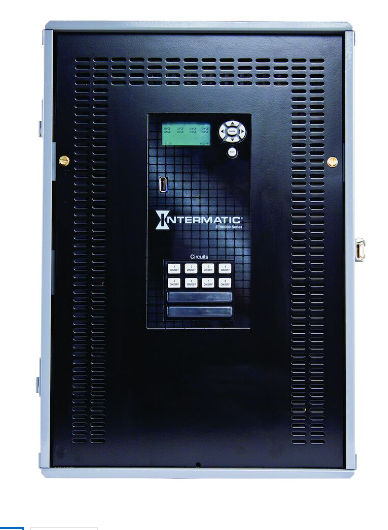

Intermatic ET90815CR

ET90815CR Product Description

The ET90000 Series combines powerful and intuitive scheduling with truly maintenance-free convenience and included capability of a 2 hour override. The PC App and Mobile App provide real-time remote control, and the USB connection and Ethernet capabilities enable in-field updates. These products can be used to help meet Title 24 requirements.

Specification:

Stock Code: ET90815CR
Brand: Intermatic
Family: 365-Day Advanced Energy Controls
Voltage (V): 120-277 Volt 50/60Hz
Amperage: 30 Amps
Width (in): 12 5/8 in.
Height (in): 19 1/8 in.
Depth (in.): 5 3/8 in.
Minimum ON/OFF Time: 1 second
Maximum ON/OFF Time: Permanent
Battery Back Up: Yes
Housing: NEMA 3R Indoor/Outdoor Steel Enclosure
Set Points: 4000+ ON/OFF
Switch Type: SPDT
Operates 8 Circuits
Start Temp. (Min) -40°F/ -40°C
Start Temp. (Max) 120°F/ 50°C
UL Listed CSA, CSAus Liste
