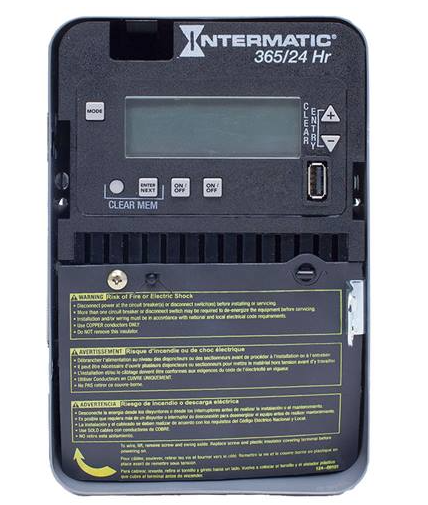

Intermatic ET2125C

ET2125C Product Description

Intermatic Electronic Time Switch, Series: ET2000, Operation Mode: 23 hr 59 min, 120 to 277 VAC, 30 A, 1 hp, 2 hp, 1 Pole, 2 Channels, 2SPST 1NO Contact Form, 1 min to 23 hr 59 min Time Setting, 96 Pulse Events, Digital Display, 18 to 10 AWG Wire Lead Electrical Connections, NEMA 1 Enclosure, -40 to 155 deg F, Wall Mounting, 7-7/8 in H x 5-1/8 in W x 3-7/16 in D Dimensions

Specifications:

Brand Intermatic
Amperage Rating 30, 30 A
Contact Form 2SPST 1NO
Dimensions 7-7/8 in H x 5-1/8 in W x 3-7/16 in D
Display Type Digital
Electrical Connections 18 to 10 AWG Wire Lead
Enclosure Type NEMA 1
Horsepower 1, 2, 1, 2 hp
Mounting type Wall
Number of Channels 2
Number of Poles 1
Operation Mode 23 hr 59 min
Series ET2000
Temperature Rating (Degrees F) -40 to 155, -40 to 155 deg F
Time Setting 1 min to 23 hr 59 min
Voltage Rating 120 to 277, 120 to 277 VAC
UNSPSC 39122208
UPC 00078275148017
