ELCO LIGHTING ERT415CT5W 4" LED Recessed Downlight with 5-CCT Switch
ERT415CT5W
Elco Lighting ERT415CT5W
ERT415CT5W Product Description

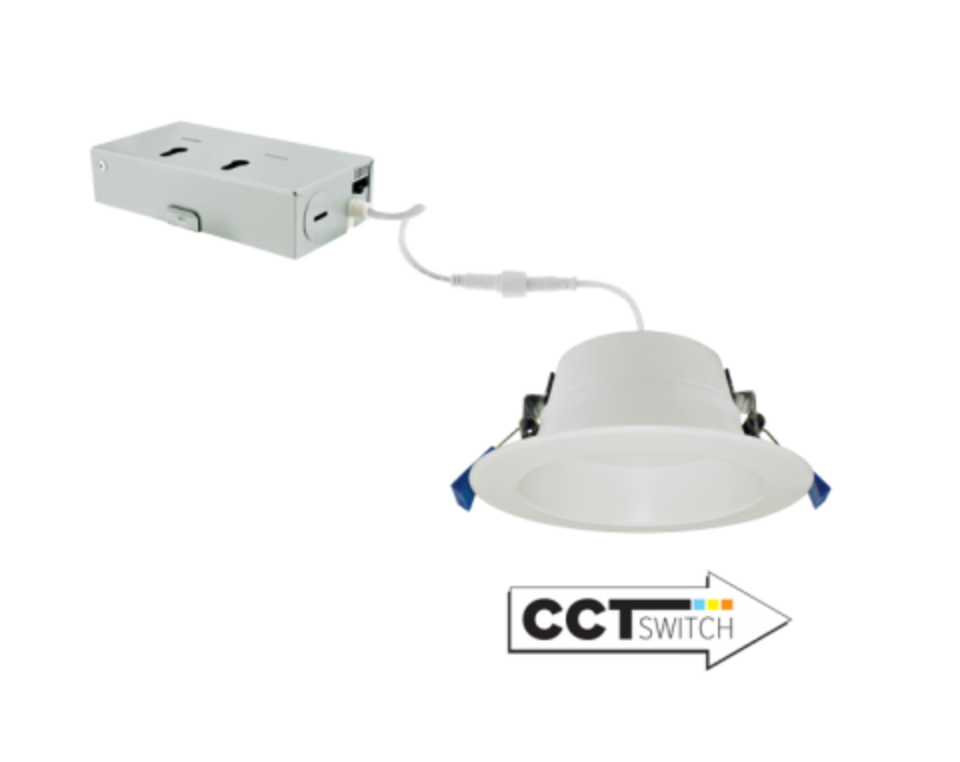

Our 4" LED Recessed Downlights are designed for quick and easy installation without a housing for both new construction and remodel applications, gives you the options you are looking for in one fixture. The manual switch allows you to choose between 2700K, 3000K, 3500K, 4000K or 5000K. IC-Rated for use with direct contact with insulation.
Features :
IC Airtight for use with direct contact to insulation. Designed to fit in plenums as shallow as 3". Eliminates the need for housing.
New Construction application requires mounting plate or frame.
Remodel applications require no additional accessories. Wet Location allows for use indoors or outdoors.
CA Title 24 and ENERGY STAR Compliant.
Includes driver and Jbox.
SPECIFICATIONS:
Wattage 9W - 12W
Lumens 500 lm - 700 lm
Voltage 120/277V
Color Temp. 2700K, 3000K, 3500K,
4000K, 5000K
Dimmable Triac/0-10V
Lamp Type LED
CRI 90+
Wet Location Listed
Optics
Polycarbonate lens diffuses light evenly throughout space with no LED pixelation.
Construction
IC rated driver and fixture are tested and approved for direct contact with insulation.Aluminum die-cast trim ring with durable powdercoat finish preventing rust and paint cracking. Plenum rated cable connector to connect from module to remote driver box. Isolated driver integrated inside aluminum remote box with two 7/8" knockouts with slots for pryout.
Installation
Designed for super shallow ceiling plenums without any housing. High strength steel spring clip for easy installation. Hole cut out template provided for accurate hole size for proper trim installation. Maximum hole size should not exceed 4 1/4" for this product. Suitable installation for t-grid and drop ceiling
applications.
Electrical: Standard input wattage is 11W, 68 lumens per watt. Replaces 75W incandescent.
Dimmability
Works with 120V Triac and ELV type dimmers. Dims down to 10%. For full list of dimmers, refer to the ELM System Dimmer Compatability List.
Listings
ETL Listed for Wet Locations. Meets ENERGY STAR® requirements. IC-Rated for direct contact with insulation. Califonia Title 24 Compliant.
Warranty: 5-year limited warranty.
