ELCO Lighting ELV7118E

ELV7118E Product Description

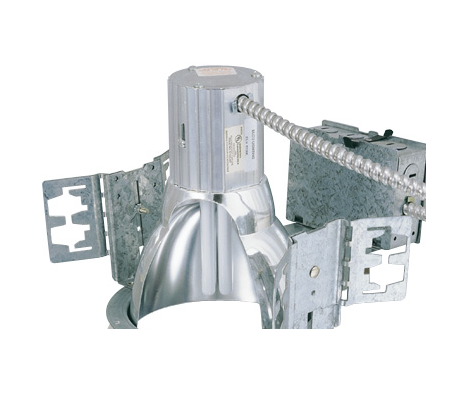

7 Inch Architectural CFL Vertical Downlight

FEATURES :

7" Vertical Architectural CFL Downlight.
Energy efficient.
Single wall construction.
Integral thermal protector guards against improper
lamping.
Housing equipped with vertically adjustable mounting
brackets that accept 1/2" conduit or C-channels (CH26)
or linear bar hangers (FB27).
Hanger bars not included, order CH26 or FB27
separately or use 1/2" EMT pipe.
Pre-wired junction box provided with 1/2" and 3/4"
knockouts.
Maximum (8) No. 12 AWG branch circuit conductors (4
in, 4 out).
Junction box provided with removable access plates.
Housing adjusts 3/4" to accommodate various ceiling
thickness.
UL Listed for damp location and for feed through.

SPECIFICATIONS :

Wattage 13W - 42W
Voltage 120/277V
Lamp Type CFL
Damp LocationListed
