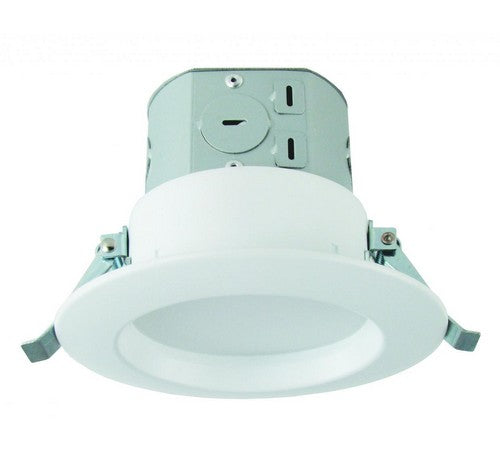

ELCO Lighting ELR48530W

ELR48530W Product Description

For use with direct contact to insulation

FEATURES :

IC rated for direct contact with insulation
No housing required
ETL Listed
CRI 90+
Dimmable Triac/ELV

SPECIFICATIONS :

Wattage : 12.5W
Lumens : 700 lm
Voltage : 120V
Color Temp. : 3000K
Dimmable : Triac/ELV
Lamp Type : LED
CRI : 90+
Wet Location : Listed

Optics: Polycarbonate lens diffuses light evenly throughout space with no LED pixelation.

Construction: IC rated driver and fixture are tested and approved for direct contact with insulation. Aluminum die-cast trim ring with durable powder coat finish preventing rust and paint cracking. Plenum rated cable connector to connect from module to remote driver box. Isolated driver integrated inside aluminum remote box with two 7/8" knockouts with slots for pryout.

Installation: Designed for super shallow ceiling plenums without any housing. High strength steel spring clip for easy installation. Hole cut out template provided for accurate hole size for proper trim installation. Maximum hole size should not exceed 4 1/4" for this product. Suitable installation for t-grid and drop ceiling applications.

Electrical: Driver connects directly to 120V power supply. Standard input wattage is 9W, 55 lumens per watt. Replaces 50W incandescent. Dimmability: Works with 120V Triac and ELV type dimmers. Dims down to 10%. For full list of dimmers, refer to the ELM System Dimmer Compatibility List.

Warranty: 5-year limited warranty.

Labels and Listings:
ETL Listed for Wet Locations.
Meets ENERGY STAR® requirements.
IC-Rated for direct contact with insulation.
Air Tight certified in accordance with ASTM E283-2004.
California Title 24 compliant (JA8-2016-E)
