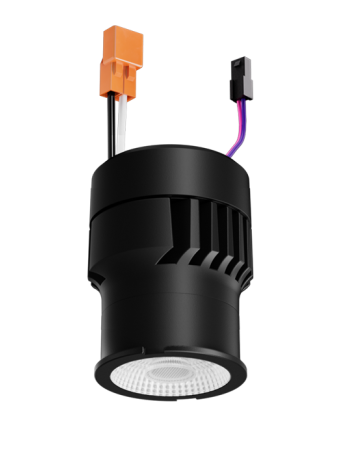

ELCO Lighting ELK10DX35-S

ELK10DX35-S Product Description

Works with 2″, 3″, 4″, and 6″ ELCO 0-10V Recessed Housings and Koto™ Trims

FEATURES :

Integrated 120/277V, 0-10V/Triac/ELV dimmable driver
Excellent color rendering 95+ CRI
Sunset Module ELK10DXSD starts from 3000K and dims to 1800K
Works in 2″, 3″, 4″, and 6″ ELCO 0-10V Housings with Koto™ twist-on trims
Energy Star Certified
Title 24 JA8-2019 Compliant
Standard 38° Lens installed, 25° and 60° lens included
with each module - Optional Lens: 18° (EP731C).
Optional: Louver (L45), Linear Lens (L46), Spread Lens (L47), Clear Lens (L48), Frosted Lens (L49), Snoot (L50),
Color Shifter (L51)
Covered by U.S. PATENTS and Patents Pending

Specifications:

Wattage 11.8W
Lumens 1000 lm
Voltage 120/277V
Color Temp. 3500K
Dimmable 0-10V/Triac/ELV
Lamp Type LED
Beam Angle 18°
CRI 95
Wet Location UL Listed w/Wet Location Trims
Damp Location UL Listed

Technical Details:

Optics: Frosted polycarbonate module lens diffuses light evenly throughout while reducing glare with LED technology.

Construction: Integrated driver and light engine with quick connect. Diecast aluminum body with heat fins allow for efficient cooling.

Installation: Twist-on design for toolless trim installation, for use with Koto™ trims only. Can be use in 2", 3", 4" and 6" ELCO 0-10V Recessed Housings.

Electrical: Module connects to 120/277V power supply. High efficiency driver with a power factor >0.9. Start time of less than 0.75 seconds.

LED Technology: Extremely accurate Color Rendering Index of 95+. Lumen Maintaince of 50,000 hours L70 Life based on LM80 standardized test results. Superior Thermal Management by utilizing integrated heat sink. Instant On to Full Brightness technology. No LED pixilation.

Sunset: Sunset color temperature is our dim-to-warm LED technology that allows the color temperature to become warmer as the product is dimmed. Our SUNSET items start at 3000K and go as low as 1800K when dimmed. For Sunset dim technology be sure to order an item with "Sunset" in the Color Temperature (CCT) attribute.

Dimmability: Works with 120/277V, 0-10V/Triac/ELV type dimmers. Dims down to 5%. For full list of dimmers, refer to the Dimmer Compatibility List. Industry leading dimming that dims smoothly with no hot spots or flickering

Listings: UL Listed for Damp Locations. UL Listed for Wet Location with Wet location trims. RoHS Compliant.
