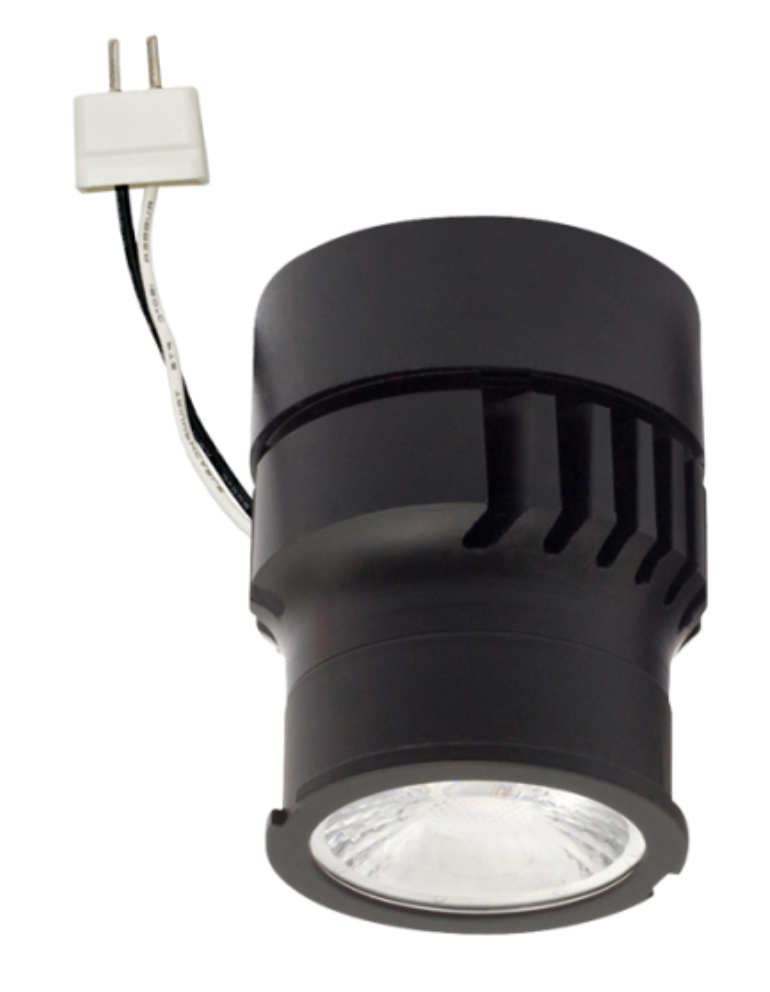

ELK0830-12 Product Description

Features

9W, 800 lm, 3000K
Integrated 12V AC Dimmable Driver
Works with Electronic and Magnetic 12V AC transformers
Works in 3′′ and 4′′ ELCO Low Voltage Housings Excellent color rendering 93+ CRI
Standard 25°, 38°, and 60° Lenses Included - Optional Lens 18° (EP731C)
Optional: Louver (L45), Linear Lens (L46), Spread Lens (L47)
Patent Pending

Specifications Dimensions

Wattage Lumens Voltage Color Temp. Lamp Type Beam Angle CRI

9W
800 lm
12V AC 3000K
LED
25o, 38o, 60o 90

Technical Details

Optics: Frosted polycarbonate module lens diffuses light evenly throughout while reducing glare with LED technology.

Construction: Integrated 12V AC driver and light engine. Diecast aluminum body with heat fins allow for efficient cooling.

Installation: Twist-lock design for toolless trim installation. Can be use in 3" and 4" ELCO Low Voltage housings with 3" and 4" KotoTM Trims.

Electrical: Module connects to 12V AC power supply. High efficiency driver with a power factor >0.9. Start time of less than 0.75 seconds.

LED Technology: Extremely accurate Color Rendering Index of 90+. Lumen Maintaince of 50,000 hours L70 Life based on LM80 standardized test results. Superior Thermal Management by utilizing integrated heat sink. Instant On to Full Brightness technology. No LED pixilation.

Dimmability: Dims down to 10%. For full list of dimmers, refer to the Dimmer Compatibility List. Industry leading dimming.

Warranty: ELCO Products are built to last with a 5-year Limited Warranty
