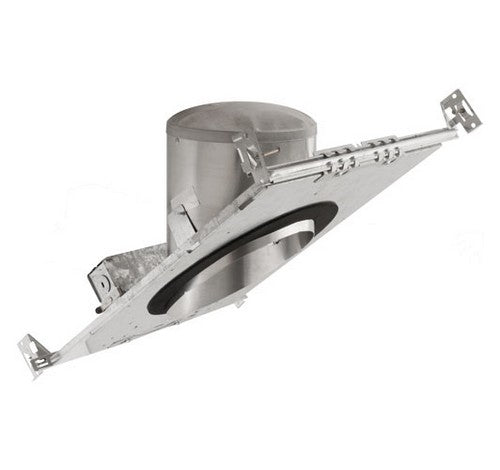

ELCO Lighting EL901HT 6" Super Sloped Ceiling Medium Base Non-IC New Construction Housing
2 sold in last 8 hours
customers are viewing this product
ELCO Lighting EL901HT
EL901HT Product DescriptionELCO Slant allows for installation in sloped ceilings ranging from 7/12 (30°) to 12/12 (45°). Fits in 2" x 8" joist construction.
FEATURES :Non-IC Super Slope New Construction Housing.
Integral thermal protector guards against improper lamping.
Designed for use in 7/12 to 12/12 sloped ceiling.
Socket: Medium base E26.
Compatible with Medium Base Incandescent, CFL or LED Lamp MAX. 90W. Works with LED Quick-Connect Inserts with PSA30 Socket Adapter.
SPECIFICATIONS :Wattage : 85 or 90W
Voltage : 120V
Lamp Type : Medium Base (E26)
Damp Location : Listed
Designed for use in 7/12 to 12/12 sloped ceiling where insulation must be kept 3" away from fixture housing.
Housing adjusts in frame to accommodate up to 1 1/4” ceiling thickness.
Aluminum housing for greater heat dissipation. Stamped galvanized steel frame.
Installation: Designed for ceiling plenums where 2x8 joists or taller are used. High strength hanger bars can easily be nailed to joists. Template for hole cutout is provided with each housing. Suitable for T-grid and drop ceiling applications. See installation sheet for detailed information.
Junction Box: Positioned to accommodate straight conduit runs. Seven 1/2” trade size conduit knockouts and four pry-out knockout slots for easy romex installation.
Hanger Bars: Pre-installed hanger bars with True Nail easy installation in regular lumber, engineered lumber, and Laminated Beams. Integral T-bar slots for easy installation in T-Bars. Spans up to 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while aligning the housings with the joists.
Rated for 120V or 277V input.
For 277V step down to 120V housing consult factory.
Trims: Compatible with EL602, EL603, EL604, EL606, EL607, EL608.
Labels and Listings:
UL Listed for Damp Location.
UL Listed for Feed Through.
About Elco LightingFounded in 1991 by its president, Steve Cohen, ELCO Lighting develops and markets lighting products for commercial and residential applications. Founded on the philosophy that high-quality commercial and residential lighting should be sold at a fair market price, Elco Lighting has designed and engineered lighting for residential and commercial spaces for almost two decades. Their product line includes track and recessed lighting fixtures, exit and emergency lights, under cabinet lighting, wall packs, step lights and more.
