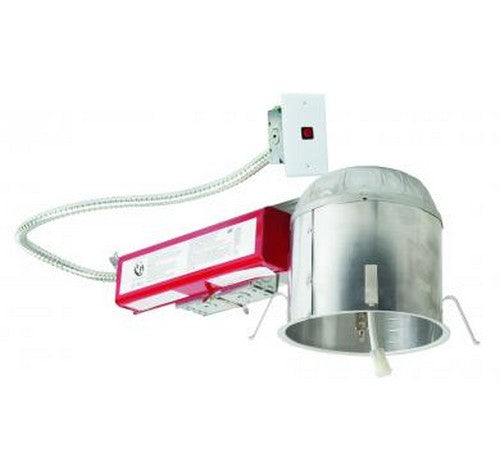

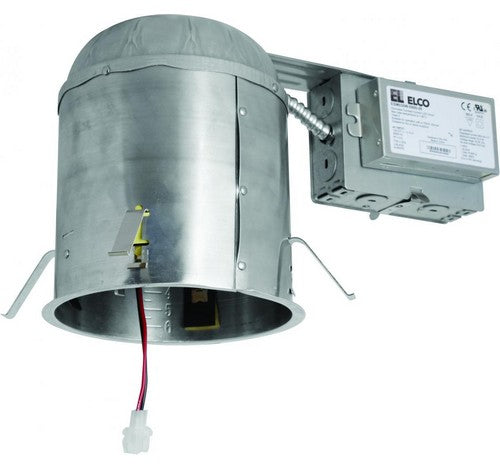

ELCO Lighting EL7611RICAD 6" Recessed Housings for Commercial Construction E.L.L. Module 1100lm

2 sold in last 8 hours

EL7611RICAD

$56.25
$56.25
customers are viewing this product

ELCO Lighting EL7611RICAD

EL7611RICAD Product Description

Must be used with Commercial Construction E.L.L. Module (ELL18 OR ELL21 Series)
IC Airtight
0-10V/Triac/ELV dimming
optional Emergency battery back-up.

SPECIFICATIONS :

Lumens : 850 lm - 1100 lm
Voltage : 120/277V
Dimmable : Triac/ELV/0-10V
Lamp Type : LED

Construction:
Single wall IC rated for direct contact with insulation. For use in IC and non-IC conditions. 850 or 1100 lumens.
Housing adjusts in frame to accommodate up to 1 1/2" ceiling thickness.
Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.

Installation:
Designed for ceiling plenums where 2x6 joists or taller are used.
High strength hanger bars can easily be nailed to joists.
Suitable for T-grid and drop ceiling applications.
See installation sheet for detailed information.

Junction Box: Positioned to accommodate straight conduit runs. Two 3/4” knockouts, Seven 1/2” trade size conduit knockouts, One 3/8" knockout. Four Pry-out knockout slots for easy romex installation.

Hanger Bars: Pre Installed hanger bars with True Nail easy installation in regular lumber, engineered lumber, and Laminated Beams. Integral T-bar slots for easy installation in T-Bars. Spans up 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while easily aligning the housings with the joists.

Electrical:
Driver is rated for 120V and 277V input (120/277V).
High Efficiency driver with a power factor > 0.95.

Dimmability:
3 in 1 dimming: Triac, ELV and 0-10V dimming in one driver.
0-10V dimming down to 1% with compatible dimmer and Lutron Driver.
Can be specified with Lutron drivers for specific applications.
For full list of dimmers refer to the Dimmer Compatibility List.

Labels and Listings:
UL Listed for Wet Location with select module/trims.
UL Listed for Direct Contact with Insulation and Combustible Material.
UL Listed for Feed Through.
