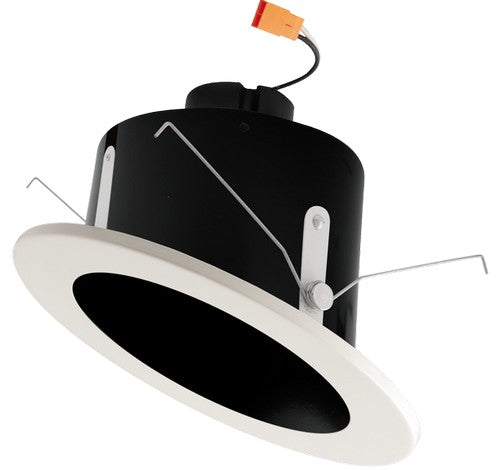

ELCO Lighting EL71630B 18W 6" Sloped Ceiling LED Reflector Inserts Black with White Ring 3000K, 1200lm
2 sold in last 8 hours
customers are viewing this product
ELCO Lighting EL71630B
EL71630B Product DescriptionSloped Ceiling LED inserts feature an integral gimbal for ±25° adjustability. Compatible with most incandescent and electronic low voltage dimmers.
FEATURES :Sloped Ceiling LED Inserts feature an integral gimbal for ±25° adjustability.
Compatible with most incandescent and electronic low voltage dimmers.
ENERGY STAR® Certified. California Title 24 (JA8-2016-E).
Life Span: 50,000 hours L70.
SPECIFICATIONS :Wattage : 15W - 18W
Lumens : 1050 lm - 1200 lm
Voltage : 120V
Color Temp. : 2700K - 3000K
Dimmable : Triac/ELV
Lamp Type : LED
CRI : 90+
Damp Location : Listed
Optics: LED light engine has frosted polycarbonate lens with reflector to diffuse light evenly throughout while reducing glare.
Construction: Deep phenolic baffle trim with torsion springs to be held into the housing. High quality powder coat finish preventing rust and paint cracking on metal parts. Integral gimbal allows for 25° adjustability to match slope.
Installation: Designed to install into ELCO 6” Sloped ceiling housing with torsion springs brackets. For retrofitting other manufacturers sloped ceiling cans always test the product to ensure proper fit and function.
Driver connects to 120VAC power supply.
High efficiency, high power factor > 0.9 driver.
Accurate color rendering with 90+ CRI.
Lumen Maintaince of 50,000 hours L70 Life based on LM80 standardized test results.
Superior Thermal Management by utilizing aluminum die cast heat sink.
Housings: Compatible with EL970ICA, EL970RICA.
Dimmable with most standard TRIAC and ELV type dimmers.
Dimming range of 100% down to 10%. Dimming range may vary depending on dimmer model.
For full list of dimmers refer to the Dimmer Compatibility List.
Warranty: ELCO Products are built to last. 5-year Limited warranty.
Labels and Listings:
UL Listed for Damp Location.
ENERGY STAR® Certified.
California Title 24 (JA8-2016-E).
About Elco LightingFounded in 1991 by its president, Steve Cohen, ELCO Lighting develops and markets lighting products for commercial and residential applications. Founded on the philosophy that high-quality commercial and residential lighting should be sold at a fair market price, Elco Lighting has designed and engineered lighting for residential and commercial spaces for almost two decades. Their product line includes track and recessed lighting fixtures, exit and emergency lights, under cabinet lighting, wall packs, step lights and more.
