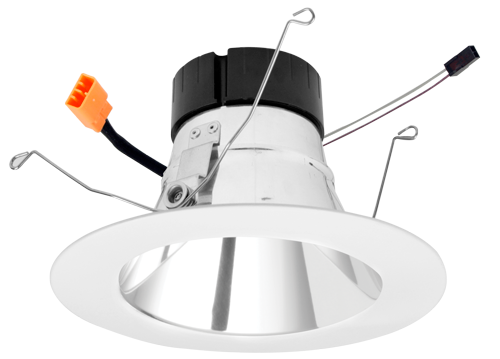

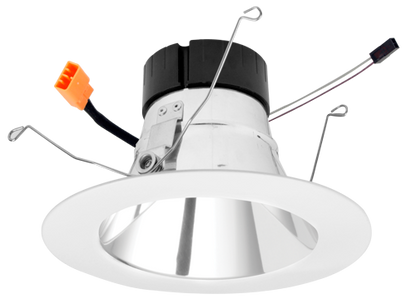

ELCO Lighting EL69540DCW 6 Inch 0-10V LED Inserts Chrome with White Ring Finish 4000K 1500 lm

2 sold in last 8 hours
ELCO Lighting
customers are viewing this product

ELCO Lighting EL69540DCW

EL69540DCW Product Description

The Ply System 0-10V dimmable LED Inserts are engineered with energy-efficient LED technology and with a 120/277V 0-10V dimmable driver for a budget friendly 0-10V solution. Designed to be used for New Construction, Remodel with ELCO Ply System Housings or as a retrofit with existing housings.


0-10V Dimmable
120/277V Driver
Soft white lens provides smooth lumen distribution and
eliminates LED pixelation
Deep set LED trim reduces glare while providing even
93+ CRI for extremely accurate color rendering
CA Title 24, ETL listed, ENERGY STAR, JA8-2016-E
Life span of 50,000 hours L70


Wattage 20W
Lumens 1350 lm - 1500 lm
Voltage 120/277V
Color Temp. 3000K - 4000K
Dimmable 0-10V
Lamp Type LED
CRI 93+
Wet Location Listed

Optics: Frosted polycarbonate lens diffuses light evenly throughout while reducing glare with LEDArray technology.

Construction: For use in IC and non-IC housings. Spun Aluminum for greater heat dissipation. High quality powder coat finish preventing rust and paint cracking.

Installation: Quick connect for use with EL76FICDXA, EL76FICDXA-B, EL760ICDXA, EL760ICDXA-B, EL760ICDXA-EM5 and EL760RICDXA.

Electrical: Driver connects to 120/277V power supply. High Efficiency driver with a power factor > 0.9. Start time of less than .75 seconds.

LED Technology: Extremely accurate color rendering with 93+ CRI. Lumen Maintenance of 50,000 hours L70 Life based on LM80 standardized test results. Superior Thermal Management by utilizing integral heat sink. Instant On to Full Brightness. No LED pixelation.

Dimmability: Works with 0-10V dimmers . Dims down to 10%. For full list of dimmers refer to the Dimmer

Compatibility List. Industry leading dimming. Dims smoothly with no hot spots or flickering.

Listings: Listed for Wet Location. RoHS Compliant. ENERGY STAR® Certified. California Title 24 JA8-2016-E.

Warranty: ELCO Products are built to last with a 5-year Limited Warranty.
