ELCO Lighting EL685CT5DW

EL685CT5DW Product Description

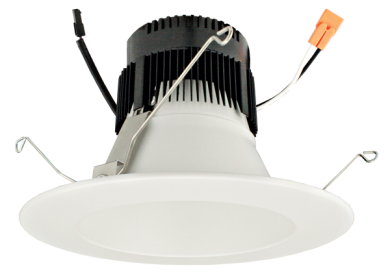

This unique Ply System 0-10V dimmable LED Insert gives you the options you are looking for in one fixture. Engineered with energy-efficient LED technology and with a 120/277V 0-10V dimmable driver for a budget friendly 0-10V solution. Switch to desired Color Temperature (2700K, 3000K, 3500K, 4000K or 5000K) and Lumen Output (1000 lm, 1500 lm, 2000 lm) by using manual switch located on module. Designed to be used for New Construction, Remodel with ELCO Ply System Housings or as a retrofit with existing housings.

FEATURES :

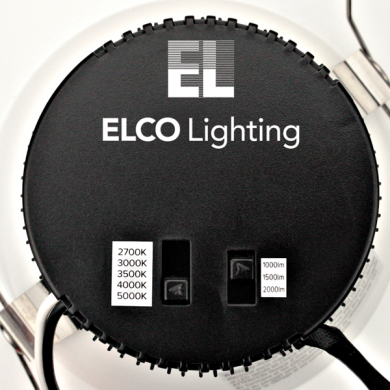

Manual switch to choose desired Color Temperature and
Lumen Output
0-10V Dimmable
120/277V Driver
Soft white lens provides smooth lumen distribution and
eliminates LED pixelation
Deep set LED trim reduces glare while providing even
illumination
90+ CRI for extremely accurate color rendering
CA Title 24, ETL listed, ENERGY STAR, JA8-2016-E
Life span of 50,000 hours L70

SPECIFICATIONS :

Wattage 13, 19, 24W
Lumens 1000, 1500, 2000 lm
Voltage 120/277V
Color Temp. 2700K, 3000K, 3500K,
4000K, 5000K
Dimmable 0-10V
Lamp Type LED
CRI 90+
Wet Location Listed

Technical Details

Optics: Frosted polycarbonate lens diffuses light evenly throughout while reducing glare with LED Array technology.

Construction: For use in IC and Non-IC housings. Spun Aluminum for greater heat dissipation. High quality powder coat finish preventing rust and paint cracking.

Installation: Quick connect for use with EL76FICDXA, EL76FICDXA-B, EL760ICDXA, EL760ICDXA-B, EL760ICDXA-EM5 and EL760RICDXA.

Electrical: Driver connects to 120/277V power supply. High Efficiency driver with a power factor > 0.9. Start time of less than .75 seconds.

LED Technology: Extremely accurate color rendering with 93+ CRI. Lumen Maintenance of 50,000 hours L70 Life based on LM80 standardized test results. Superior Thermal Management by utilizing integral heat sink. Instant On to Full Brightness. No LED pixelation.

Dimmability: Works with 0-10V dimmers . Dims down to 10%. For full list of dimmers refer to the Dimmer Compatibility List. Industry leading dimming. Dims smoothly with no hot spots or flickering.

Listings: Listed for Wet Location. RoHS Compliant. ENERGY STAR® Certified. California Title 24 JA8-2016-E.

Warranty: ELCO Products are built to last with a 5-year Limited Warranty.
