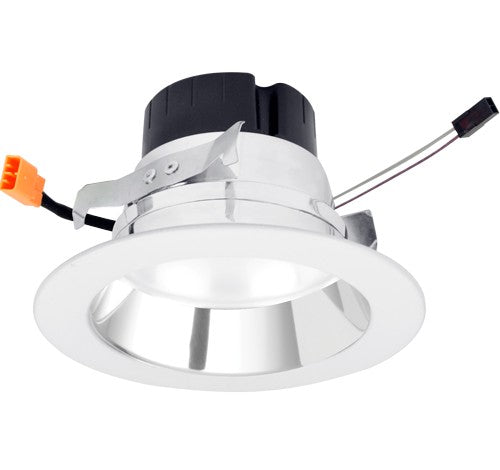

ELCO Lighting EL49530DCW 12W 4 Inch 0-10V LED Inserts Chrome with White Ring Finish 3000K
2 sold in last 8 hours
customers are viewing this product
ELCO Lighting EL49530DCW
EL49530DCW Product DescriptionThe Ply System 0-10V dimmable LED Inserts are engineered with energy-efficient LED technology and with a 120/277V 0-10V dimmable driver for a budget friendly 0-10V solution. Designed to be used for New Construction, Remodel with ELCO Ply System Housings or as a retrofit with existing housings.
FEATURES :0-10V Dimmable
Soft white lens provides smooth lumen distribution and eliminates LED pixelation
Deep set LED trim reduces glare while providing even illumination
93+ CRI for extremely accurate color rendering
CA Title 24, ETL listed, ENERGY STAR, JA8-2016-E
Life span of 50,000 hours L70
SPECIFICATIONS :Wattage : 12W
Lumens : 800 lm - 900 lm
Voltage : 120/277V
Color Temp. : 3000K - 4000K
Dimmable : 0-10V
CRI : 93+
Wet Location : Listed
Optics: Frosted polycarbonate lens diffuses light evenly throughout while reducing glare with LED Array technology.
Construction: For use in IC and non-IC housings. Spun Aluminum for greater heat dissipation. High quality powder coat finish preventing rust and paint cracking.
Installation: Quick connect for use with ELCO 4" 0-10V Dedicated LED Housings ELJ444ICDXA, ELJ444ICDXAB, ELJ444ICDXA-EM5, EL49FICDXA, EL49FICDXA-B, EL490ICDXA, EL490ICDXA-B, EL490ICDXA-EM5, EL490RICDXA, EL492ICDXA, EL492ICDXA-B and EL492RICDXA.
Electrical: Driver connects to 120/277V power supply. High Efficiency driver with a power factor > 0.9. Start time of less than .75 seconds.
LED Technology: Extremely accurate color rendering with 93+ CRI. Lumen Maintenance of 50,000 hours L70 Life based on LM80 standardized test results. Superior Thermal Management by utilizing integral heat sink. Instant On to Full Brightness. No LED pixelation.
Dimmability: Works with 0-10V dimmers . Dims down to 10%. For full list of dimmers refer to the Dimmer Compatibility List. Industry leading dimming. Dims smoothly with no hot spots or flickering.
Listings: UL Listed for Wet Location. RoHS Compliant. ENERGY STAR® Certified. California Title 24 JA8-2016-E.
Warranty: ELCO Products are built to last with a 5-year Limited Warranty.
Labels and Listings:
cULus Listed for US and Canada
UL Listed for Damp Location.
Meets Title 24 high efficacy requirements.
ENERGY STAR® Certified.
About Elco LightingFounded in 1991 by its president, Steve Cohen, ELCO Lighting develops and markets lighting products for commercial and residential applications. Founded on the philosophy that high-quality commercial and residential lighting should be sold at a fair market price, Elco Lighting has designed and engineered lighting for residential and commercial spaces for almost two decades. Their product line includes track and recessed lighting fixtures, exit and emergency lights, undercabinet lighting, wall packs, step lights and more.
