ELCO Lighting EL492ICDXA

EL492ICDXA Product Description

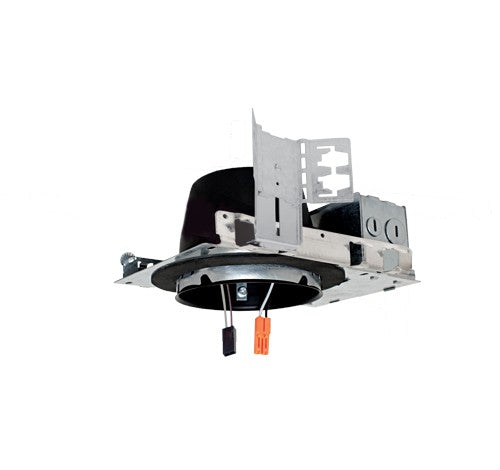

4" Shallow new construction dedicated LED housing. Compatible with 4" 0-10V LED inserts.

FEATURES :

Wired for 0-10V Dimming
Single wall IC Airtight rated for Direct Contact with Insulation
120/277V Input
Meets restricted air flow requirements (per ASTM E-283)
UL Listed for direct contact with Insulation
UL Listed for Damp Locations
UL Listed for Wet Location with Wet Location Rated Inserts
UL Listed for Feed Through
CA Title 24 Compliant

SPECIFICATIONS :

Wattage : 14W
Voltage : 120/277V
Wet Location : Listed
Damp Location : Listed

Construction:
Single wall IC rated for direct contact with insulation, for use in IC or non-IC conditions.
Housing adjusts in frame to accommodate up to 1 1/2" ceiling thickness.
Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.
Steel housing for greater heat dissipation. Stamped galvanized steel frame.

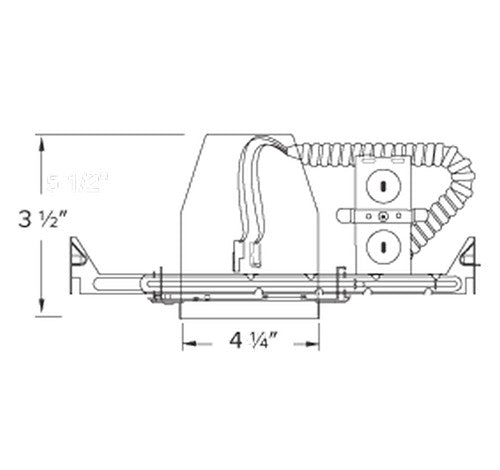

Installation: Designed for ceiling plenums where 2x6 joists or taller joists are used. High strength hanger bars can easily be nailed to joists. Maximum hole cutout is 4 1/4". Suitable for T-grid and drop ceiling applications. See installation sheet for detailed information.

Junction Box: Positioned to accommodate straight conduit runs. Seven 1/2" trade size conduit knockouts, four 3/4" knockouts with pry-out knockout slots. 4 Romex pryouts with strain relief.

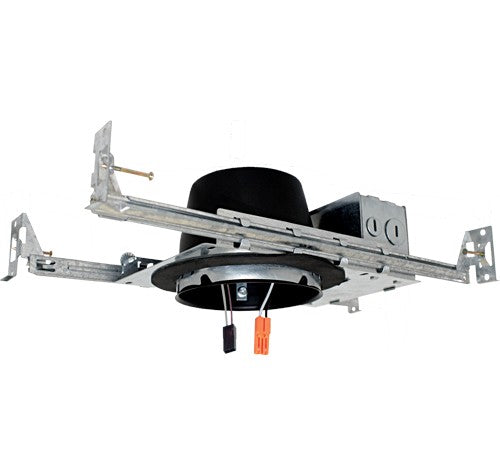

Hanger Bars: Pre-installed hanger bars with TrueNail facilitate easy installation in regular lumber, engineered lumber, and laminated beams. Integral T-bar slots for easy installation in T-bars. Spans up to 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while aligning the housings with the joists.

Electrical:
Input Voltage: 120/277V
Inherently protected.

Dimmability:
Dimmability based on lamp.

Lamp: Designed for use with ELCO 4" 0-10V LED inserts.

Warranty: ELCO Lighting warrants products will be free from defects in materials and workmanship for a period of 5 years.

Labels and Listings:
UL Listed for Damp Location.
UL Listed for Wet Location with select trims.
UL Listed for Feed Through.
UL Listed for Direct Contact with Insulation and Combustible Material.
Airtight per ASTM E-283.
Install a JA8-2016-E lamp for Title 24 Compliance.
