ELCO Lighting EL41435DXW 4 Inch 0-10V LED Adjustable Gimbal Insert White Finish 3500K

2 sold in last 8 hours
ELCO Lighting
EL41435DXW
$119.93
$119.93
customers are viewing this product

ELCO Lighting EL41435DXW

EL41435DXW Product Description

The Ply System 0-10V dimmable LED Inserts are engineered with energy-efficient LED technology and with a 120/277V 0-10V dimmable driver for a budget friendly 0-10V solution. Designed to be used for New Construction, Remodel with ELCO Ply System Housings or as a retrofit with existing housings..

FEATURES :

0-10V/Triac/ELV Dimmable
120/277V Driver
Compatible with EL490 Family (not for use in shallow
housings)
Die-Cast construction provides lasting durability.

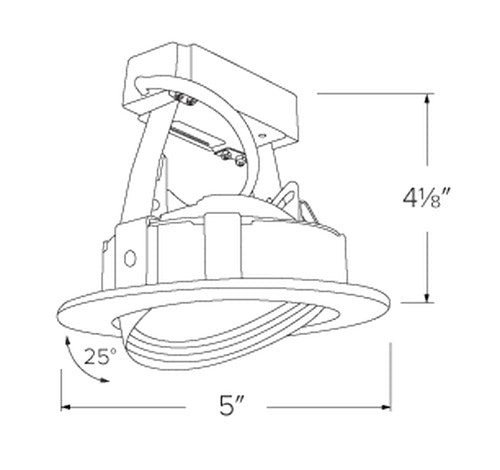

25° Tilt.
CA Title 24, ENERGY STAR, JA8-2016-E.
Life Span of 50,000 hours L70.

SPECIFICATIONS :

Wattage 10.5W
Lumens 650 lm - 710 lm
Voltage 120/277V
Color Temp. 2700K - 3500K
Dimmable Triac/ELV/0-10V
Lamp Type LED
Beam Angle 60°

Optics: Frosted polycarbonate lens diffuses light evenly throughout while reducing glare with LED Array technology.

Construction: For use in IC and Non-IC Housings. Diecast construction for lasting quality and greater heat dissipation. High quality powder coat finish preventing rust and paint cracking.

Installation: Quick connect for use with EL49FICDXA, EL49FICDXA-B, EL490ICDXA, EL490ICDXA-B and EL490RICDXA.


Electrical: Driver connects to 120/277V power supply. High Efficiency driver with a power factor > 0.9.

LED Technology:
Extremely accurate color rendering with 93+ CRI.
Lumen Maintenance of 50,000 hours L70 Life based on LM80 standardized test results.
Superior Thermal Management by utilizing integral heat sink.
Instant On to Full Brightness.
No LED pixelation.
Dimmability: Works with Triac/ELV/ 0-10V dimmers . Dims down to 10%. For full list of dimmers refer to the
Dimmer Compatibility List.
Listings: UL Listed for Damp Location. RoHS Compliant. ENERGY STAR® Certified. California Title 24 JA8-2016- E.

Warranty:
ELCO Products are built to last with a 5-year Limited Warranty.

About Elco Lighting

Founded in 1991 by its president, Steve Cohen, ELCO Lighting develops and markets lighting products for commercial and residential applications. Founded on the philosophy that high-quality commercial and residential lighting should be sold at a fair market price, Elco Lighting has designed and engineered lighting for residential and commercial spaces for almost two decades. Their product line includes track and recessed lighting fixtures, exit and emergency lights, undercabinet lighting, wall packs, step lights and more.
