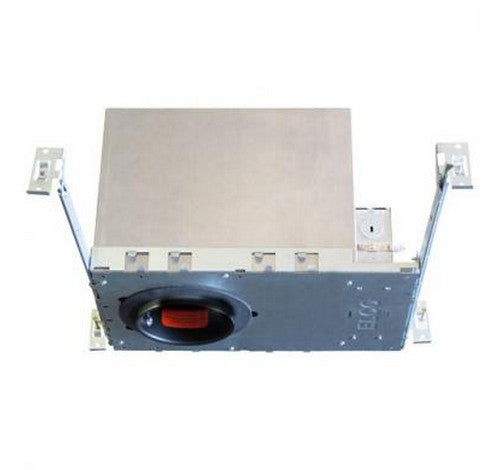

ELCO Lighting EL2699ICEA 3" Electronic Low Voltage Airtight IC Housing for MR16 Bi-Pin
2 sold in last 8 hours
customers are viewing this product
Elco Lighting EL2699ICEA
EL2699ICEA Product DescriptionLine voltage down lighting is a popular choice for lighting residential and commercial spaces because of its comforting light output and easy maintenance. Elco Lighting has a vast selection of line voltage housings and trims in a variety of aperture sizes.
FEATURES :Double wall IC construction, for use in insulated ceilings.
Trims sold separately.
Lamp: 50W MAX, 12V, MR16 GU/GX5.3 BiPin LED/Halogen (not included)
Note: Use only dimmers specifically designed for use with magnetic transformers.
SPECIFICATIONS :Lamp Type : GU5.3 BiPin
Damp Location : Listed

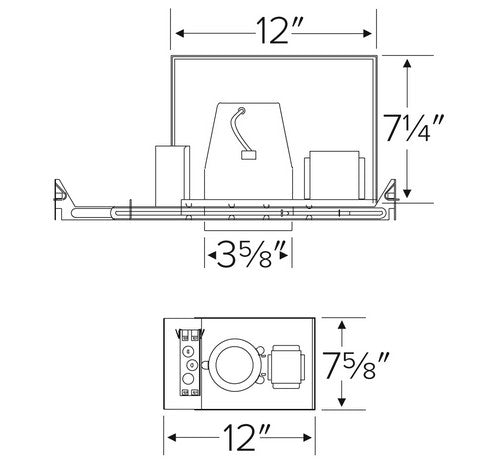

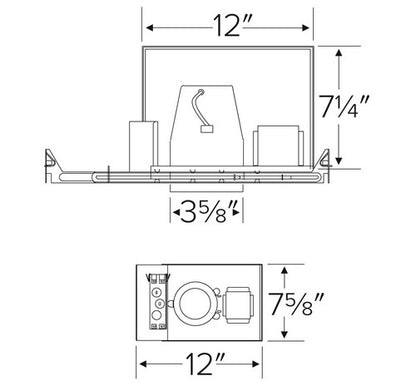

IC rated for direct contact with insulation, for use in IC or non-IC conditions. Housing adjusts in frame to accommodate up to 1 1/4" ceiling thickness. Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements. Aluminum housing for greater heat dissipation. Stamped galvanized steel frame.
Installation: Designed for ceiling plenums where 2x6 joists or taller are used. High strength hanger bars can easily be nailed to joists. Maximum hole cutout is 3 3/4". Suitable for T-grid and drop ceiling applications. See installation sheet for detailed information. Access above the ceiling is not required for servicing & repairs occuring after installation (junction box is accessible from below the ceiling).
Junction Box: Positioned to accommodate straight conduit runs. Seven 1/2" trade size pryout conduit knockouts, 4 Romex pryouts with strain relief.
Hanger Bars: Pre-installed hanger bars with True Nail facilitate easy installation in regular lumber, engineered lumber, and laminated beams. Integral T-bar slots for easy installation in T grids. Spans up to 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while aligning the housing with the joists.
Input Voltage: 120V AC.
Output Voltage: 12V AC.
Magnetic or electronic transformer available.
Thermally protected against improper lamping.
Trims: Compatible with ELCO Low Voltage MR16 trims.
Magnetic transformer dims with MLV type dimmers.
Electronic transformer dims with ELV type dimmers.
See dimming compatibility list for a list of compatible dimmers.
Note: Lamp used may affect dimmability.
Lamp: Designed for use with GU5.3 MR16 lamps up to 50W.
Warranty: ELCO Lighting warrants products will be free from defects in materials and workmanship for a period of 3 years.
Labels and Listings:
UL Listed for Damp Location.
UL Listed for Wet Location with Shower trims.
UL Listed for Feed Through.
UL Listed for Direct Contact with Insulation and Combustible Material. Airtight per ASTM E-283.
Install a JA8-2016-E lamp/luminaire for Title 24 Compliance.
About Elco LightingFounded in 1991 by its president, Steve Cohen, ELCO Lighting develops and markets lighting products for commercial and residential applications. Founded on the philosophy that high-quality commercial and residential lighting should be sold at a fair market price, Elco Lighting has designed and engineered lighting for residential and commercial spaces for almost two decades. Their product line includes track and recessed lighting fixtures, exit and emergency lights, under cabinet lighting, wall packs, step lights and more.
