ELCO Lighting EL1499ICA-277 50W 4" Low Voltage Airtight IC Housing
2 sold in last 8 hours
customers are viewing this product
Elco Lighting EL1499ICA-277

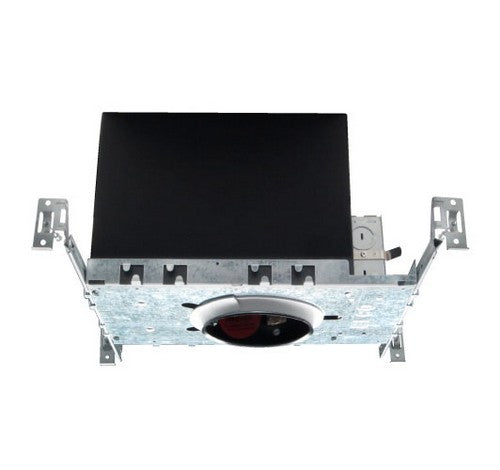

EL1499ICA-277 Product Description4" new construction housing with a magnetic or electronic transformer. Uses a GU5.3 Bi-Pin socket for use with Bi-Pin LED MR16 lamps.
FEATURES :Double wall IC construction, for use in insulated ceilings.
Trims sold separately.
Lamp: 50W MAX, 12V, MR16 GU/GX5.3 bi-pin LED/Halogen (not included).
Lamp Holder: MR16 GU/GX5.3 bi-pin socket.
Note: Use only dimmers specifically designed for use with magnetic transformers. Low voltage luminaires may produce audible sound when used with dimmers.
SPECIFICATIONS :Wattage : 20W - 50W
Voltage : 120V or 277V
Lamp Type : GU5.3 BiPin
Damp Location : Listed
Double wall IC rated for direct contact with insulation, for use in IC or non-IC conditions.

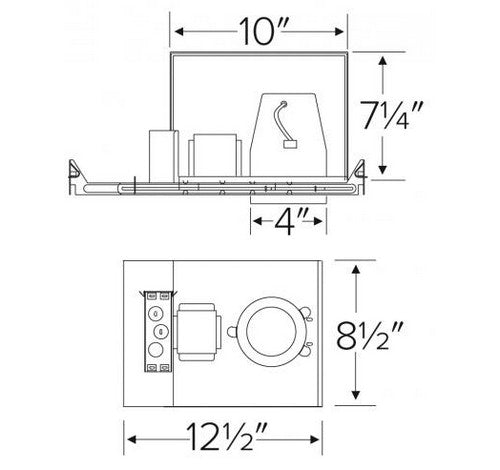

Housing adjusts in frame to accommodate up to 1 1/4" ceiling thickness.
Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.
Steel housing for greater heat dissipation. Stamped galvanized steel frame.
Installation: Designed for ceiling plenums where 2x6 joists or taller joists are used. High strength hanger bars
can easilty be nailed to joists. Maximum hole cutout is 4 1/4". Suitable for T-grid and drop ceiling applications.
See installation sheet for detailed information.
Junction Box: Positioned to accommodate straight conduit runs. Seven 1/2" trade size conduit knockouts, four 3/4" knockouts with pry-out knockout slots. 4 Romex pryouts with strain relief.
Hanger Bars: Pre-installed hanger bars with True Nail facilitate easy installation in regular lumber, engineered lumber, and laminated beams. Integral T-bar slots for easy installation in T-bars. Spans up to 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while aligning the housings with the joists.
Input Voltage: 120V AC.
Output Voltage: 12V AC.
Magnetic or electronic transformer available.
Thermally protected against improper lamping.
Trims: Compatible with ELCO 4" MR16 trims.
Magnetic transformer dims with MLV type dimmers.
Electronic transformer dims with ELV type dimmers.
See dimming compatibility list for a full list of compatible dimmers.
Note: Lamp used may affect dimmable.
Lamp: Designed for use with GU5.3 MR16 LED lamps.
Labels and Listings:
UL Listed for Damp Location.
UL Listed for Wet Location with select trims.
UL Listed for Feed Through.
UL Listed for Direct Contact with Insulation and Combustible Material.
Airtight per ASTM E-283.
Install a JA8-2016-E lamp/luminaire for Title 24 Compliance.
Warranty: ELCO Lighting warrants products will be free from defects in materials and workmanship for a period of 3 years.
About Elco LightingFounded in 1991 by its president, Steve Cohen, ELCO Lighting develops and markets lighting products for commercial and residential applications. Founded on the philosophy that high-quality commercial and residential lighting should be sold at a fair market price, Elco Lighting has designed and engineered lighting for residential and commercial spaces for almost two decades. Their product line includes track and recessed lighting fixtures, exit and emergency lights, under cabinet lighting, wall packs, step lights and more.
