ELCO Lighting EL1499-75A 75W 4" Low Voltage Airtight Universal Housing
2
sold in last
8
hours
EL1499-75A
$47.57
customers are viewing this product
PRODUCT DESCRIPTION
Elco Lighting EL1499-75A
EL1499-75A Product Description

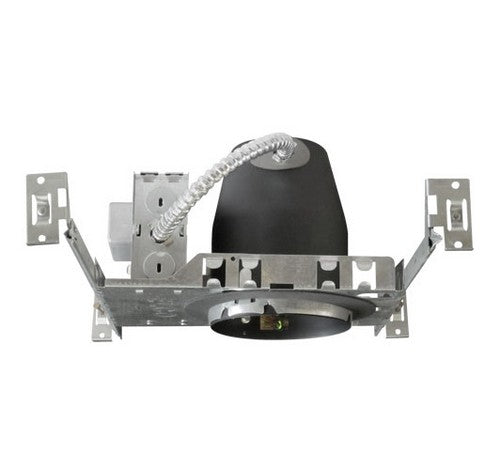

4" Low Voltage new construction Airtight Universal housing. Uses a GU5.3 Bi-Pin socket for use with Bi-Pin LED MR16 lamps.FEATURES :
Single wall airtight construction.Trims sold separately.
Lamp: 75W MAX 12V MR16 GU/GX5.3 bi-pin Halogen (not included).
Lamp Holder: MR16 GU/GX5.3 bi-pin socket.
Note: Use only dimmers specifically designed for use with magnetic low voltage transformer.
SPECIFICATIONS :
Wattage : 75WVoltage : 120V
Dimmable : MLV
Lamp Type : GU5.3 BiPin
Damp Location : Listed
Construction:
Shallow double wall IC rated for direct contact with insulation, for use in IC or non-IC conditions.
Housing adjusts in frame to accommodate up to 1 1/4" ceiling thickness.
Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.
Steel housing for greater heat dissipation. Stamped galvanized steel frame.
Installation: Designed for ceiling plenums where 2x6 joists or taller joists are used. High strength hanger bars
can easilty be nailed to joists. Maximum hole cutout is 4 1/4". Suitable for T-grid and drop ceiling applications.
See installation sheet for detailed information.
Junction Box: Positioned to accommodate straight conduit runs. Seven 1/2" trade size conduit knockouts, four 3/4" knockouts with pry-out knockout slots. 4 Romex pryouts with strain relief.
Hanger Bars: Pre-installed hanger bars with True Nail facilitate easy installation in regular lumber, engineered lumber, and laminated beams. Integral T-bar slots for easy installation in T-bars. Spans up to 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while aligning the housings with the joists.
Electrical:
Input Voltage: 120V AC.
Output Voltage: 12V AC.
Magnetic or electronic transformer available.
Thermally protected against improper lamping.
Trims: Compatible with ELCO 4" MR16 trims.
Dimmability:
Magnetic transformer dims with MLV type dimmers.
Electronic transformer dims with ELV type dimmers.
See dimming compatibility list for a full list of compatible dimmers.
Note: Lamp used may affect dimmable.
Lamp: Designed for use with GU5.3 MR16 LED lamps.
Warranty: ELCO Lighting warrants products will be free from defects in materials and workmanship for a period of 3 years.
Labels and Listings:
UL Listed for Damp Location.
UL Listed for Wet Location with select trims.
UL Listed for Feed Through.
UL Listed for Direct Contact with Insulation and Combustible Material.
Airtight per ASTM E-283.
Install a JA8-2016-E lamp/luminaire for Title 24 Compliance.
About Elco Lighting
Founded in 1991 by its president, Steve Cohen, ELCO Lighting develops and markets lighting products for commercial and residential applications. Founded on the philosophy that high-quality commercial and residential lighting should be sold at a fair market price, Elco Lighting has designed and engineered lighting for residential and commercial spaces for almost two decades. Their product line includes track and recessed lighting fixtures, exit and emergency lights, under cabinet lighting, wall packs, step lights and more.Have Questions?Ask a BuyRite Electric Expert
