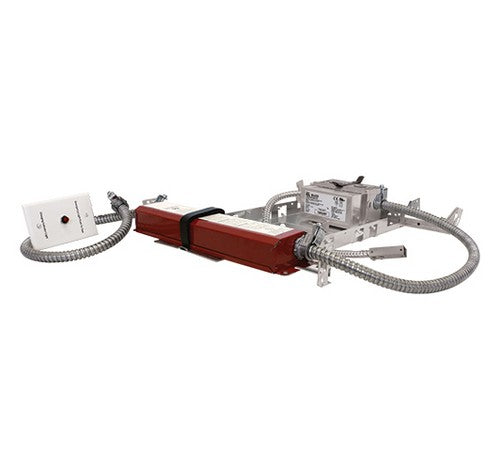

ELCO Lighting E5SQLFU20EM1 16W - 28W 5" IC Shallow Frame with Driver and Emergency Battery Backup 2000lm

2 sold in last 8 hours

E5SQLFU20EM1

$193.26
$193.26
customers are viewing this product

Elco Lighting E5SQLFU20EM1

E5SQLFU20EM1 Product Description

5" IC Frame for Maple™ System LED Light Engines. For use in Insulated Ceilings, Damp Location rated and Wet Location rated with applicable LED Light Engines.

FEATURES :

For use in Insulated Ceilings with ELCO 5" Maple ™ LED Light Engines.
90 minute emergency operation, 120/277 VAC, 60Hz.
Suitable for wet location covered ceiling only with E520/E524 Light Engines (ordered separately).
2⅞" height allows for installation in shallow ceilings (when used with non adjustable light engines).
CA T24 Compliant (JA8-2016), ENERGY STAR®.

SPECIFICATIONS :

Wattage : 16W - 28W
Lumens : 2000 lm
Voltage : 120/277V
Dimmable : Triac/ELV or 0-10V
Wet Location : Listed with E520/E524 Inserts
Damp Location : Listed

Construction:
IC Rated for Direct Contact with Insulation with E52 Maple System LED Light Engines. Stamped galvanized steel frame.

Installation:
Designed for shallow ceiling plenums where 2x4 joists or taller are used.
High strength hanger bars can easily be nailed to joists.
Suitable for T-grid and drop ceiling applications.
See installation sheet for detailed information.
Driver mounted on junction box for cooler LED operation.

Junction Box: 16 gauge pre-wired galvanized steel Junction Box, 25 cubic-inch for a maximum of (8) #12 AWG wires. Positioned to accommodate straight conduit runs. Furnished with seven 1/2” trade size conduit pry-out knockouts, four 3/4” pry-out knockouts, one 1" pry-out knockout and (4) Romex pry-outs with strain relief. Strain clamps to install or remove covers for easy access and grounding.

Hanger Bars: Pre Installed hanger bars with True Nail easy installation in regular lumber, engineered lumber, and Laminated Beams. Integral T-Bar slots for easy installation in T-Bars. Spans up 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while easily aligning the housings with the joists.

Electrical:
Driver is rated for 120V and 277V input (120/277V).
High efficiency, high power factor > 0.9 driver.

Labels and Listings:
UL/cUL Listed for Damp Location and for Wet Location with select trims.
UL Listed for Direct Contact with Insulation and Combustible Material.
UL Listed for Feed Through.
Inserts meet restricted air flow requirements (Per ASTM E-283).

About Elco Lighting

Founded in 1991 by its president, Steve Cohen, ELCO Lighting develops and markets lighting products for commercial and residential applications. Founded on the philosophy that high-quality commercial and residential lighting should be sold at a fair market price, Elco Lighting has designed and engineered lighting for residential and commercial spaces for almost two decades. Their product line includes track and recessed lighting fixtures, exit and emergency lights, under cabinet lighting, wall packs, step lights and more.
