ELCO Lighting E4LRU30L 4 Inch Remodel Frame with Driver 3000 lm 120/277V Lutron
ELCO Lighting E4LRU30L
E4LRU30L Product Description

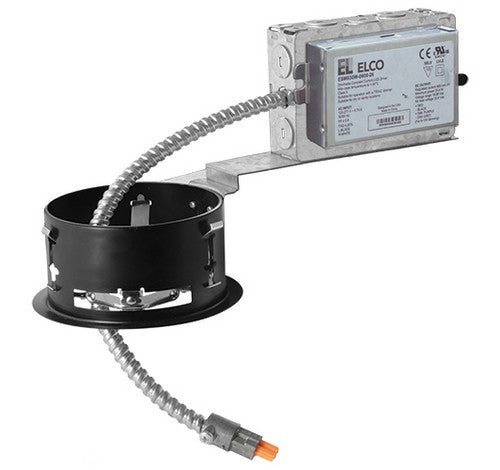

4" Remodel Frame with Driver
Optional 90 minutes, 120/277 VAC, 60Hz Emergency
USA designed and assembled.
LED Light Engine sold separately (see Compatible Trims).
Lumens 850 lm - 3000 lm
Voltage 120/277V or 120V
Dimmable Triac/ELV/0-10V, Sunset,
Power Factor ≥0.9
Constructed from 16 gauge galvanized steel for commercial building applications.
Remodel clips hold housing sturdily into place.
Junction Box: Positioned to accommodate straight conduit runs. Seven 1/2” trade size conduit knockouts and four pry-out knockout slots for easy romex installation.
Driver is rated for 120V and 277V input (120/277V).
High Efficiency driver with a power factor > 0.9.
Can be specified with Lutron drivers for specific applications.
3 in 1 dimming: Triac, ELV and 0-10V dimming in one driver.
0-10V dimming down to 5% with a compatible dimmer.
Can be specified with Lutron drivers for 0.1% and 1% dimming.
For a full list of dimmers refer to the Dimmer Compatibility List.
Listings: cULus Listed for Damp Location. cULus Listed for Wet Location with select trims. cULus Listed for Direct Contact with Insulation and Combustible Material for units up to 2000 lm. cULus Listed for Feed
Through. ENERGY STAR® Certified.
Warranty: ELCO Products are built to last. 5-year Limited warranty.
