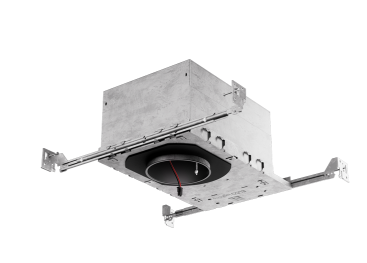

ELCO Lighting E4LK79ICADAL

E4LK79ICADAL Product Description

FEATURES :

• IC Airtight for direct contact with insulation.
• Easy-to-Remove driver.
• MAX. 35° adjustability.
• Optional 90 minutes, 120/277 VAC, 60Hz, Emergency Backup.
• Flicker-Free Dimming.
• USA designed and assembled.
• Limited 5 year warranty.
• For use with ELCO Koto™ Architectural LED Light Engines (ELK21 and ELK24 Series).

SPECIFICATION :

Wattage 18.9W
Lumens  1500 lm
Voltage 120/277V
Dimmable  DALI 2
Lamp Type LED
Power Factor  ≥0.95
Damp Location  Listed

Construction: Double Wall IC Rated for direct contact with insulation. For use in IC and Non-IC conditions. Up
to 1500 lumens. Housing adjusts in frame to accommodate up to 1 1/2" ceiling thickness. Airtight housing with
gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.
Installation: Designed for ceiling plenums where 2x6 joists or taller are used. High strength hanger bars can
easily be nailed to joists. Suitable for T-grid and drop ceiling applications. See installation sheet for detailed
information. Emergency Battery Back-up Option requires access from above. For use with ELCO Koto™
Architectural LED Light Engines (ELK21 and ELK24 Series).
Junction Box: Positioned to accommodate straight conduit runs. Two 3/4” knockouts, Seven 1/2” trade size
conduit knockouts, One 3/8" knockout. Four Pry-out knockout slots for easy romex installation.
Hanger Bars: Pre Installed hanger bars with True Nail easy installation in regular lumber, engineered lumber,
and Laminated Beams. Integral T-bar slots for easy installation in T-Bars. Spans up 24" and can be
repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for
single-person installation while easily aligning the housings with the joists.
Delivered Lumens: 2700K:1360 lm, 3000K:1430 lm, 3500K: 1510 lm, 4000K: 1690 lm
Electrical: Driver is rated for 120V and 277V input (120/277V). High Efficiency driver with a power factor >
0.95. Access from above required for EM option.
Emergency Battery Pack: Optional 90 minute battery pack available with test indicator switch. Note that
double wall housings require Access From Above Ceiling for Battery Maintenance.
Dimmability: 3-in-1 Dimming: Triac, ELV and 0-10V dimming in one driver. 0-10V Dimming down to 1% with a
compatible dimmer. ICALWN - Lutron Athena Wireless Node. Can be specified with Lutron drivers for 0.1% and
1% dimming. For a full list of dimmers refer to the Dimmer Compatibility List.
Listings: cUL Listed for Damp Location and for Wet Location with select trims. cUL Listed for Direct Contact
with Insulation and Combustible Material. cUL Listed for Feed Through.
