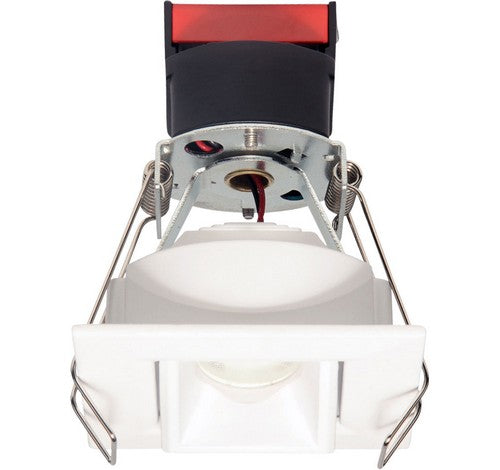

ELCO Lighting E1L32F40W Oak System Contemporary White LED 1" Round Recessed Adjustable Gimbal 4000K
2 sold in last 8 hours
customers are viewing this product
ELCO Lighting E1L32F40W
E1L32F40W Product Description
1" Round Recessed Adjustable Oak™ Gimbal Small aperture 12V AC Downlight delivers over 600 lumens. More than a traditional 50W MR16 Halogen Lamp. Requires 12V AC Transformer (daisy chain up to 6). Dimmable ELV, MLV or 0-10V depending on transformer used.
IC Airtight for use with direct contact to insulation
Height allows for use in 2 x 4 construction
Daisy chain up to 6 fixtures with E1LDRV60
38° Standard beam with optional 28° and 50°
Remodel requires no frame
Damp location Rated
JA8-1016-E, UL, and Energy Star Listed
Life Span 50,000 Hours L70
SPECIFICATIONS :Wattage 6W
Lumens 625 lm - 700 lm
Voltage 12V AC
Color Temp. 2700K - 4000K
Lamp Type LED
Beam Angle 28° - 50°
Optics: PC Lens for even lumen distribution.
Construction: Diecast construction for lasting quality and greater heat dissipation. High quality powder coat finish preventing rust and paint cracking.
Installation: Can be installed on E1LF2 New Construction frame. Remodel requires no frame.
Hole cutout size: 2-3/8" (61 mm)
Extremely accurate color rendering with 93+ CRI.
Efficacy of max. 97 lumens per watt.
Lumen Maintenance of 50,000 hours L70 based on LM80 standardized test results.
Superior Thermal Management by utilizing aluminum body as heat sink.
Electrical/Transformer: Requires transformer. Can be daisy chained up to 6 fixtures with E1LDRV60.
Dimming: Dims with MLV dimmers when powered by magnetic transformer. Works with ELV dimmers when powered by ELV transformer.
Listings: UL Listed for Damp Location. ENERGY STAR® Certified. California Title 24 (JA8-2016-E).
Warranty: ELCO Products are built to last with a 5-year Limited warranty.
