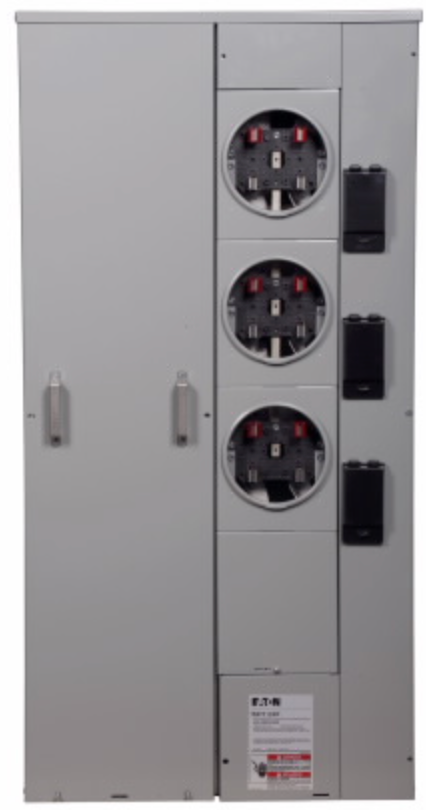

Eaton 1MP3124R 120/240 VAC 400 Amp 1-Phase 3-Wire 3-Socket Aluminum Ring Meter Pack
2
sold in last
8
hours
1MP3124R
$3,800.00
customers are viewing this product
PRODUCT DESCRIPTION
DESCRIPTION
EATON's meter packs or all-in-ones, allow multi-tenant metering in a single location and thus provide a space and installation cost savings for residential and light commercial applications. Ideal for garden apartments, small condominiums and townhouses where six or less units are metered through one centrally located meter pack.
EATON Meter Pack, 3-Wire Group Metering, Self-Contained Socket, Underground Feed, 120/240 VAC, 400 A Bus, 125 A Socket, 3 Meter Sockets, 1 ph, 6 to 2/0 AWG, 14 to 2 AWG Wire, Ring Socket Cover Style, Terminal Box Main Lugs, BR2/BRH2/BRHX2/BRHH2/BRX2 Breaker, NEMA 1/3R, Surface Mount, 7.01 in L x 24.25 in W x 48.31 in H
SPECIFICATIONS
| Breaker Type | : | BR2/BRH2/BRHX2/BRHH2/BRX2 |
| Bus Amps | : | 400 A |
| Dimensions | : | 7.01 in L x 24.25 in W x 48.31 in H |
| Enclosure Type | : | NEMA 1/3R |
| Feed Type | : | Underground |
| Main Lugs | : | Terminal Box |
| Mounting Type | : | Surface |
| Number of Meter Sockets | : | 3 |
| Phase | : | 1 ph |
| Socket Amps | : | 125 A |
| Socket Cover Style | : | Ring |
| Socket Type | : | Self-Contained |
| Type | : | 3-Wire Group Metering |
| Voltage Rating | : | 120/240 VAC |
| Wire Size | : | 6 to 2/0 AWG, 14 to 2 AWG |
FEATURES
- Units are self-contained (main terminal box included for installations requiring up to 6 m socket positions in a single enclosure)
- Units are not gangable with any other metering device
- Series rating up to 100 kA
- Bondable neutral
- Provision for 2-pole breaker
