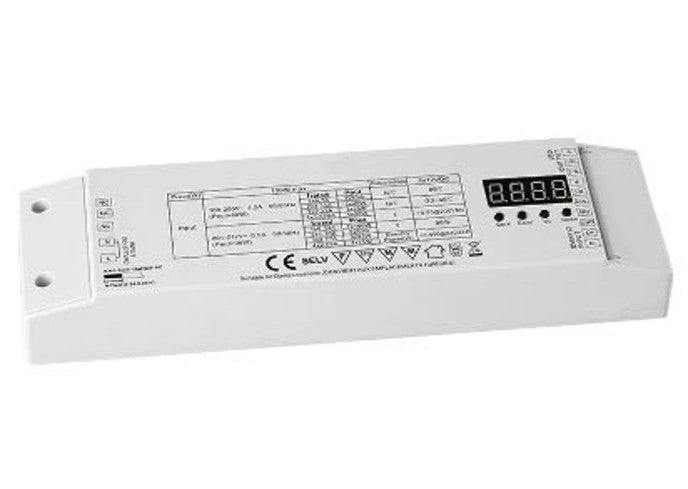

Diode LED DI-DMX-DCO-24V96W-277

DI-DMX-DCO-24V96W-277 Product Description

Commercial lighting has never been easier than before. The new DMX Driver combines the operations of a low voltage 24V Class 2 LED driver and a DMX Decoder into a single unit. UL listed for indoor usage, the 4 channel DMX 512 compatible driver meets commercial grade 24V Class 2 requirements for both Color Changing and Single Color applications.

Specifications:

Input Voltage: 120VAC / 277VAC
Output Voltage: 24VDC
Wattage: 80W (120VAC) / 96W (277VAC)
Max Run: 10 Units
Dimensions: 2.5 in. x 1.3 in. x 9 in. (W x H x L)
Environment: Indoor / Dry Location / IP20
Certification: UL Component Recognized/Listed
Warranty: 5-Year Warranty

Features:

Terminal connections
Integrated DMX 512 decoder
Commercial and residential applications

About Diode LED:

Diode LED is America's largest low-voltage linear lighting solutions provider and is preferred by lighting designers, architects, product specifiers, electricians, and general contractors.
