Diode LED CBU-ASR

CBU-ASR Product Description

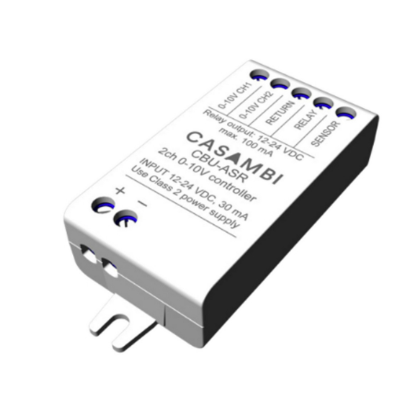

CBU-ASR is a Bluetooth-controllable, Casambi-enabled two-channel 0-10V controller for dimmable LED loads and luminaires. It is powered by an external 12-24 VDC Class 2 power supply. CBU-ASR can control two channels making it an ideal partner for tunable white (TW) applications. The two channels can be configured also to operate individually. The device also has a control port for an external relay and a sensor input.

Specifications:

Compatible Drivers: 0-10V Dimmable, Constant Voltage
Connection Type: Hard-Wired
Dimmable: Yes
Environment / IP Rating: Indoor
Input Voltage: 12-24VDC
Remote Control Type: WiFi / Mobile device
Warranty: 5-Year Limited
Voltage Range:
100-240 VAC (CE/UL/CSA)
277 VAC (UL/CSA only)
