DALS Lighting FGM4-CC-DUO-BK Duo Pivot LED Gimbal Downlight - 18W - 1,475 Lumens - CCT Selectable - 120V - Black Finish
FGM4-CC-DUO-BK
DALS Lighting FGM4-CC-DUO-BK
FGM4-CC-DUO-BK Product Description
The Pivot series of LED gimbal downlights by DALS are an excellent choice to provide long lasting, energy efficient LED illumination for your new construction or remodel ceiling application. Being CCT-selectable, they allow you to choose between 5 different white light color temperatures - from warm 27K to daylight 50K white light. These fixtures are low-profile and IC-rated, making them suitable for direct contact with insulation. This model has an even greater range of tilt than normal gimbals, allowing for a full 90º of gimbal tilt in any direction. Ideal applications include wall washing, sloped ceilings and highlighting artwork or other features.

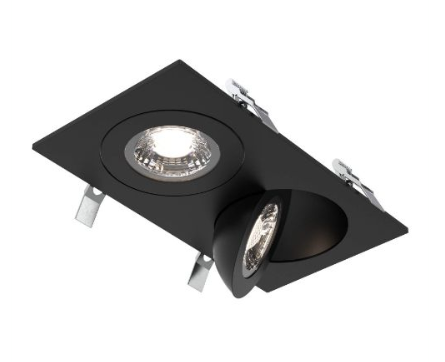

The FGM4-CC-DUO-BK is dual 4" round 9 watt gimbal downlights with black trim and provides 1,475 total lumens of CCT-selectable white light and the following features:
120V operation and dimming
CCT-selectable: choose between warm 27K, warm 30K, warm-neutral 35K, neutral 40K or daylight 50K white light color temperatures
90º swivel / 360º rotation
40º beam angle
IC-rated
Junction box with integrated dimmable driver
Daisy chainable
Damp location rated and air-tight certified
Aluminum construction and minimal heat emission
Operating temperatures: -4º to 104º F
Specifications:
Manufacturer:DALS
Manufacturer Part Number:FGM4-CC-DUO-BK
UPC:775902021230
Lumens:1,475 Lumens
Wattage:18 Watts
Input Voltage:120V
Dimmable:120V
Color Temperature:2700K, 3000K, 3500K, 4000K, 5000K
Downlight Type:Gimbal, Linear / Multiples
Color:Black
Rated Hours:50,000 Hours
Beam Angle:40 Degrees
Gimbal Tilt:30 Degrees
Min Operating Temp:-4 Degrees F
CRI:90+
Special Features:CCT Selectable, Wet Location Rated, IC Rated, Energy Star Rated
Length:9-3/16"
Width:4-13/16"
Height:1-7/16”
