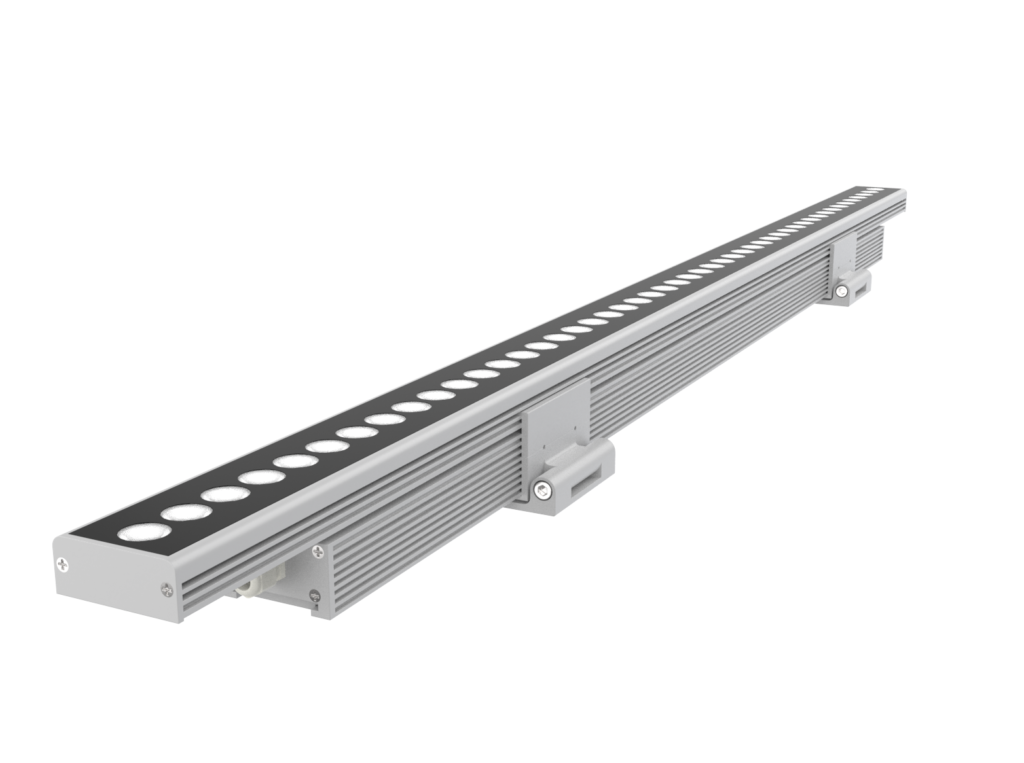

Core Lighting LWW120-HO-12-50K-15X40-TG-UNV-DIM10
LWW120-HO-12-50K-15X40-TG-UNV-DIM10 Product Description
LWW120-HO Linear Wall washer series is a powerful 120V LED flood light typically used for building facades, signs or any wall washing applications. Variety of optical lens options provides endless lighting solutions. Available in narrow, medium, wide and elliptical optic options.
SPECIFICATIONS:
POWER CONSUMPTION 12W/Ft.
CONTROL 0-10V
CRI 90
LUMENS 100 Lm/W @ 35K
MAXIMUM RUN LENGTH Linkable up to 60 ft
OPERATING VOLTAGE 100V-277VAC
OPERATING FREQUENCY 50 / 60 Hz
STORAGE TEMPERATURE -40°C to 85°C
OPERATING TEMPERATURE -40°C to 50°C
BEAM ANGLE OPTIONS 10º / 20º / 35º / 50º / 15º x 40º
HOUSING 6063 Extruded aluminum
IP RATING IP66 Outdoor/Wet Location
LUMEN MAINTENANCE 50,000 hrs.
FEATURES:
■ 12W per ft.
■ 0-10V DIMMING
■ 90 CRI
■ Linkable up to 60 ft
■ 100V-277VAC
■ 50 / 60 Hz
■ Storage temp: -40°C to 85°C
■ Operating temp: -40°C to 50°C
■ 10º / 20º / 35º / 50º / 15º x 40º
■ 6063 extruded aluminum housing
■ IP66 Outdoor/Wet Location
■ Rated to last 50,000 hrs.
About Core Lighting:
Core Lighting focus is to refine today’s illumination by developing cutting-edge and technologically advanced lighting products that are functional and energy efficient. Core Lighting has set the tone for what sets the company apart from the rest by striving for innovation, uncompromising quality and customer focused service.
