Siemens MM0202L1100EY
MM0202L1100EY Product Description

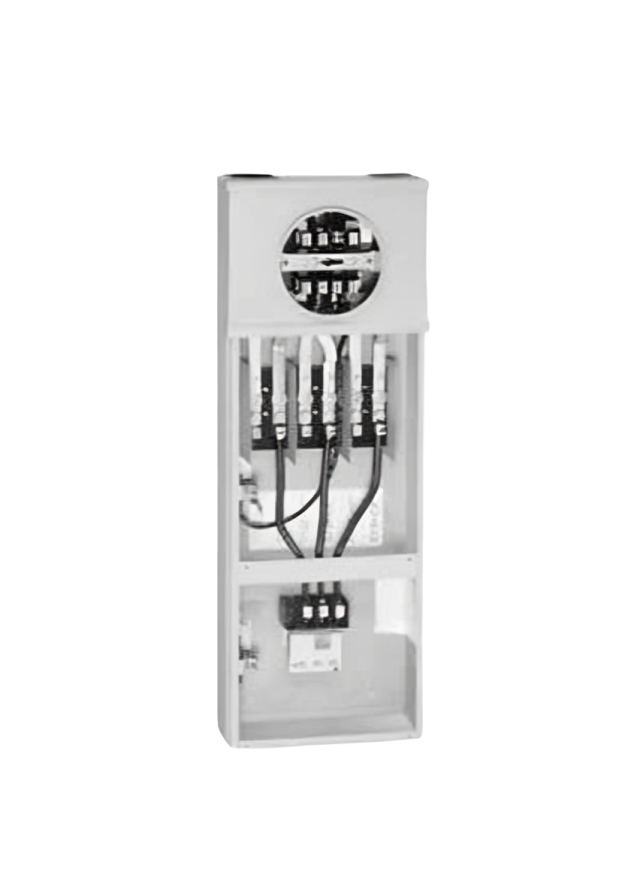

Siemens Meter Main Combination, 2-Circuit 2-Space 3-Wire Low Voltage, 240 VAC, 100 A, 1 ph, Overhead Feed, 4 Jaws, 6 to 2/0 AWG Al/Cu Wire, RX Hub, Ring Cover, Lug Terminal, 37 in H x 12.5 in W x 4.9 in D Dimensions
SPECIFICATION:
Manufacturer: Siemens
SKU: MM0202L1100EY
UPC: 040892015065
Type : 2-Circuit 2-Space 3-Wire Low Voltage
Voltage Rating : 240 VAC
Amperage Rating : 100 A
Phase : 1
Feed Type : Overhead
Number Of Jaws : 4
Wire Size : 6 to 2/0 AWG Al/Cu
Hub Type : RX
Cover Type : Ring
Terminal Type : Lug
Dimensions : 37 in H x 12.5 in W x 4.9 in D
